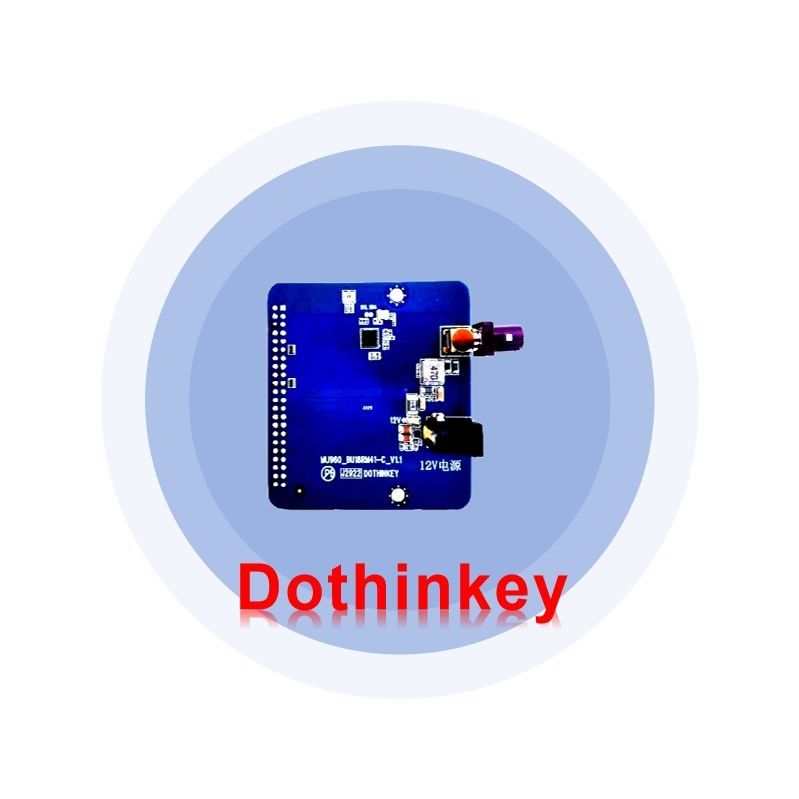

Name: High Speed Image Grabber Deserializer Board & Standard MIPI Grabber Board
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: BU18RM41-C
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

High Speed Image Grabber Deserializer Board & Standard MIPI Grabber Board

High Speed Image Grabber

Image Grabber Deserializer Board

Standard MIPI Grabber Board

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

BU18RM41-C

Request A Quote

High Speed Image Grabber Deserializer Board & Standard MIPI Grabber Board

Product Details

Name:

Deserializer Board

Power Supply (DC Socket Power Supply Mode):

DC12V/1A

Brand:

Dothinkey

Color:

Blue

Highlight:

High Speed Image Grabber

Image Grabber Deserializer Board

Standard MIPI Grabber Board

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availability

Related Products

86-755-6114-6178

Contact Now

Product Description

High-Speed Image Grabber With BU18RM41-C Deserializer Board & Standard MIPI Support

1)POWER REQUIREMENTS
• POC Supply: 12V/1A DC input (via DC power jack)
• IC Power: 1.8V DOVDD only (critical voltage limit)

2)CRITICAL WARNINGS
• BU18RM41-C chip is sensitive to overvoltage
• Always verify 1.8V setting before activation

3)INTERFACE SPECIFICATIONS
• MIPI-compatible 44-pin connector
• 2.54mm pitch dual-row header design

4)Best Practices
• Perform pre-power voltage check
• Use anti-static handling procedures
• Refer to pinout diagram for connections

Use technical indicators

Electrical specification
Power supply (DC socket power supply mode)	DC12V/1A
Compatibility characteristics of deserializer board modules
Module interface	Rohm Clockless Link-BDtm coaxial
Clockless Link-BDtm rate	3.6G/Lane(max)
Other interface descriptions
Support test kits with standard MIPI interfaces
Sensor communication index
I2C rate	100KHz~1MHz
BU18RM41-C IO Level standard	1.8v
POC power supply
Support the power supply mode	12V is provided by the DC socket
