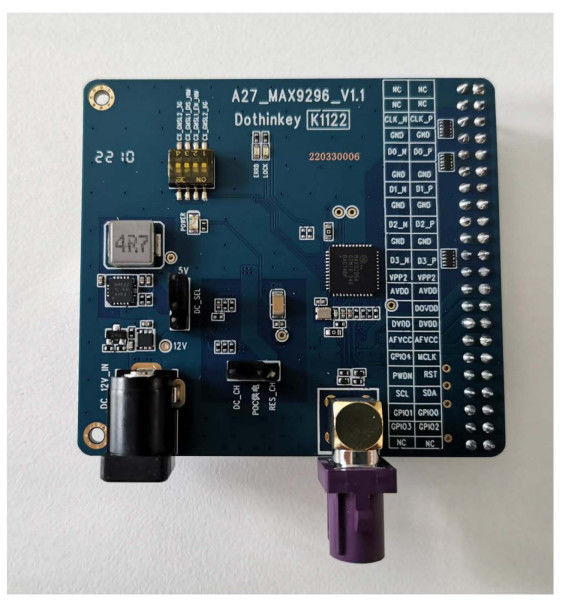

COAX Coaxial Frame Grabber Board 3G / 6G In Vehicle Decoder Board

COAX Coaxial Frame Grabber Board 3G / 6G In Vehicle Decoder Board

In Vehicle Decoder Board

COAX coaxial Frame Grabber Board

3G 6G Frame Grabber Board

Place of Origin:

shenzhen China

Brand Name:

do3think

Model Number:

UC930_MAX9296A

Contact Us
Request A Quote
COAX Coaxial Frame Grabber Board 3G / 6G In Vehicle Decoder Board
Product Details
Power Supply (DC Base Power Supply Method):
DC12V/1A
Module Interface:
COAX Coaxial
GMSL1/GMSL2 Rate:
3G / 6G
POC Powered:
Support DC5V / DC12V / VPP2 Switching
Highlight:

In Vehicle Decoder Board

,

COAX coaxial Frame Grabber Board

,

3G 6G Frame Grabber Board

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Payment Terms
T/T
Supply Ability
Negotiable
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

1.About POC power supply: This decoder board uses VPP2 to power the POC by default, and there is no need for an external power supply to the DC base. If needed, using an external power supply, the DC socket is powered by 12V/1A, and then DC12V or DC5V is selected to power the POC via the jump cap.

2.About the decoder board chip power supply: The MAX9296A chip on this decoder board is provided by the test box with four power supplies. The test box needs to be configured with this quad power supply, AVDD=1.8V, DOVDD=3.3V, DVDD=1.2V, AFVCC=1.2V. Before the drawing operation, it is necessary to ensure that the voltage does not exceed the specified range to avoid damage to the MAX9296A chip.

3.About the interface: This decoder board adopts a 2.54mm pitch, double-row 44PIN pin header interface for docking with our test box products standard MIPI interface.
