Multi Function Image Grabber Card Deserializer Board

Multi-Function Deserializer Board

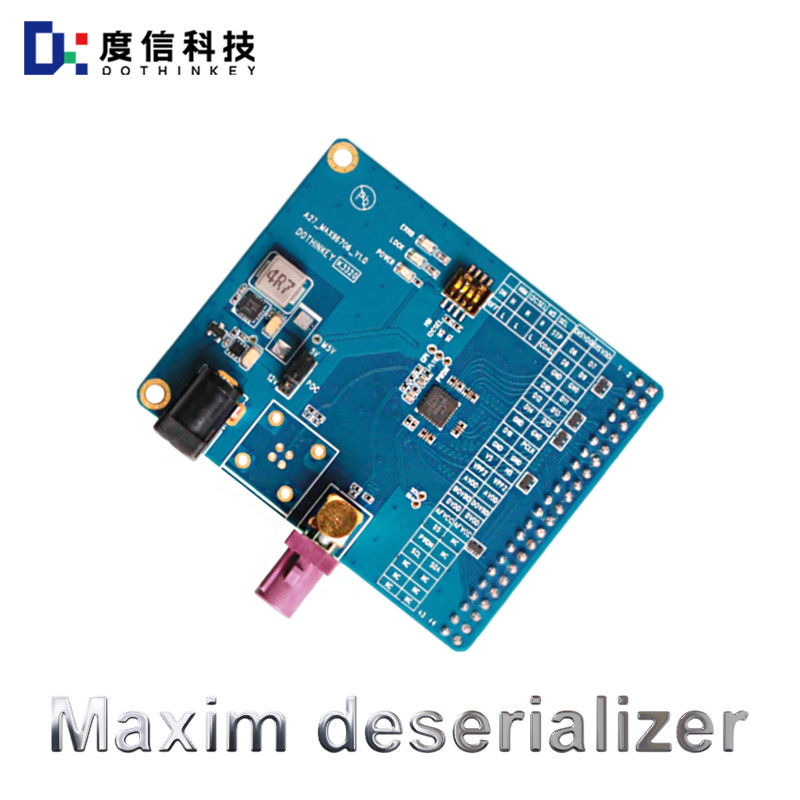

Dothinkey's A27 MAX96706 Multi-Function Deserializer Board

Must read before use:

About P0C power supply: This Deserializer board only provides SV and 12V two voltages for users to choose for the POC power supply, our factory default settings for the Our factory default setting is SV output, users must use the jumper cap to select the appropriate power supply voltage according to the voltage requirement of the module under test before use, please contact us for the jumper cap setting.

Deserializer board chip power supply: MAX96706 needs external power supply (IWDVDD, AVDD, DOVDD) on this Deserializer board, the three-way power supply must be supplied by the Image Grabber, of which the DVDD and AVDD must be fixed in the AP terminal set to 1.8V DOVDD according to the need to be set in the range of 1.8-3.3V, the operation of the map, you must ensure that the voltage settings do not exceed the prescribed limits, and the voltage settings of the several channels. The voltage settings of the several circuits should not exceed the specified range to avoid damaging the MAX96706 chip.

About the interface:This Deserializer board reserved 2X22PIN DVP interface, dedicated to collision with the MU960 series of products that support DVP.

According to the official information of MAX96706, MAX96706 is in principle used for pairing with MAX96705-MAX96711 serializers, and it can also be used with other GMSL serializers to implement interactive operation, but there are some restrictions to be noted at this time, before use, users should follow the official DATASHEET requirements of the MAXM counterparts and the official website of the QA tips carefully. design.

Every time the DIP switches of Deserializer board are set, the board needs to be re-powered to make the current setting take effect.
