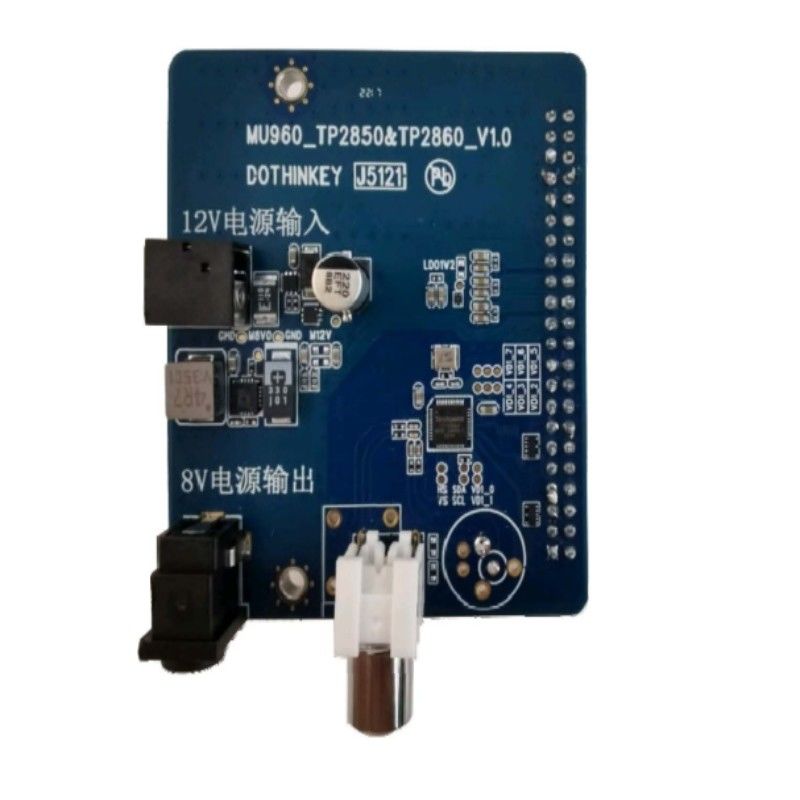

Deserializer Decoding Grabber Card Dothinkey Image Grabber Card MU960

TP2860 Deserializer for Image Grabber MU960

Features:

1. Supports decoding AHD/TVI type modules, suitable for automotive module decoding solutions;

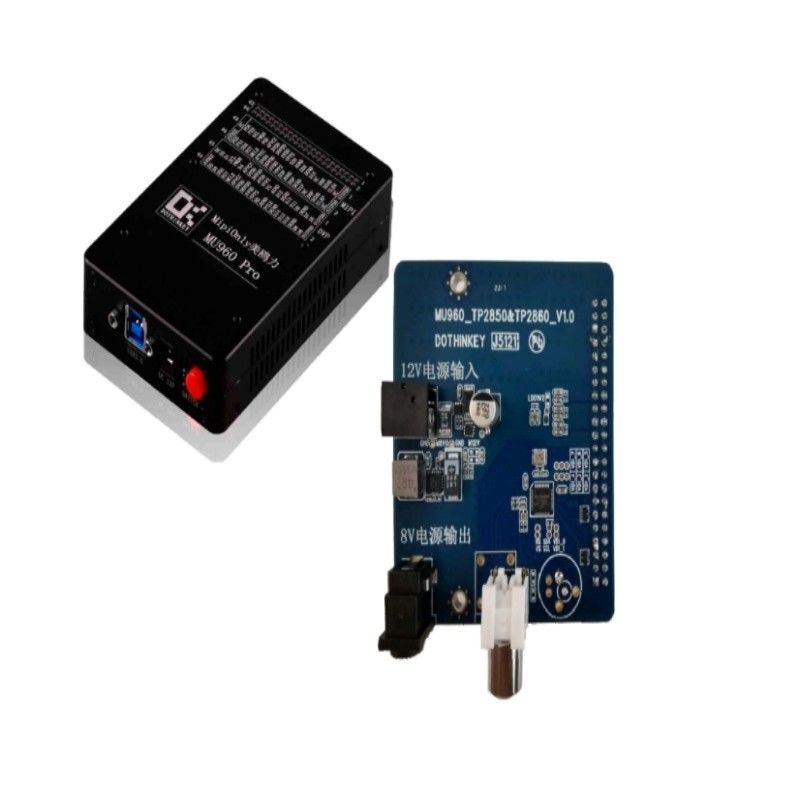

2. MIPI signal output, combined with image grabber MU960/UC930 to achieve image acquisition of automotive module.

Specification:

2. Notice before use!!!
(1) Regarding POC power supply: POC power supply of this deserializer is converted from an external 12V power supply to an 8V working voltage through a DC socket, so the deserializer requires a separate external 12V/1A power adapter.
(2) Regarding the power supply of the deserializer chip: the TP2860 chip on this deserializer requires three external power sources. The power supply is configured by the DVDD, DOVDD, and AVDD of the image grabber. DVDD must be configured to 1.2V, DOVDD can be configured as 1.8V or 3.3V, AVDD must be configured to 3.3V. Before operating, it is necessary to ensure that all voltage settings do not exceed the specified range to avoid damaging the TP2860 chip.
(3) Regarding the interface: this deserializer reserves a 2.54mm spacing, dual row 44PIN pin interface for matching our company's standard MIPI interface for image grabbers, and an RCA coaxial connector for connecting test modules.

3. Deserializer interface description:
