Name: 16 Channel Aging Test CC16Pro Image Frame Grabber Board For Automotive Camera
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CC16Pro
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

16 Channel Aging Test CC16Pro Image Frame Grabber Board For Automotive Camera

Image Frame Grabber Board

16 Channel Frame Grabber Board

Automotive Camera Grabber Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CC16Pro

Request A Quote

Product Details

Input Voltage:

100V/AC ~ 240V/AC; 50Hz/60Hz

Output Voltage:

24V/DC

Output Current:

Power Supply:

DC 24V/5A

External Interface ESD Protection:

Human Body Model (HBM) ≥ ±4000V

Working Temperature:

10℃~35℃

Storage Temperature:

-20℃~70℃

PC Communication Interface:

10G Fiber Optic ×2

Highlight:

Image Frame Grabber Board

16 Channel Frame Grabber Board

Automotive Camera Grabber Board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

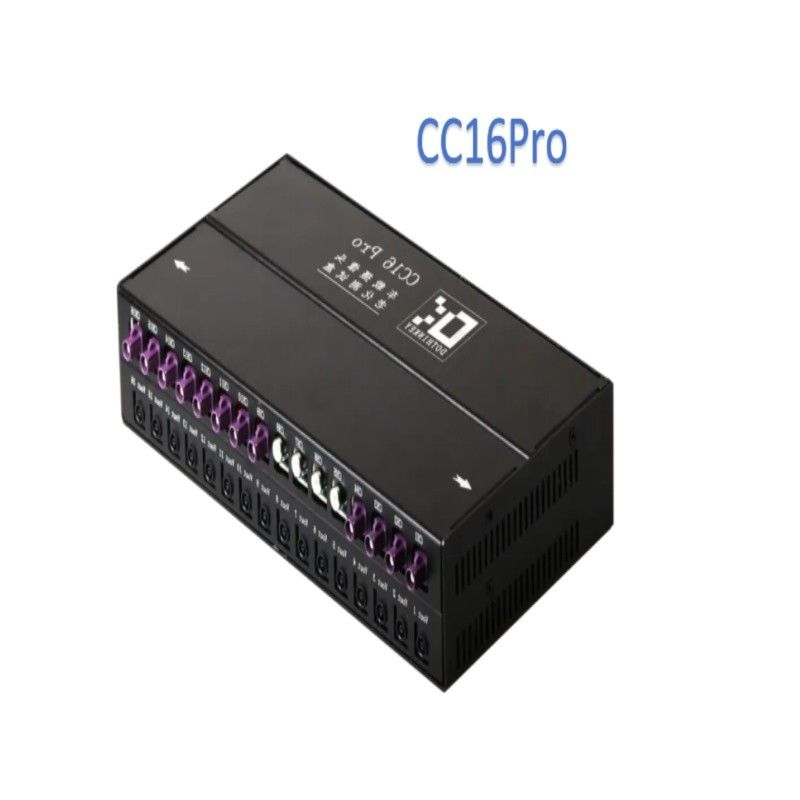

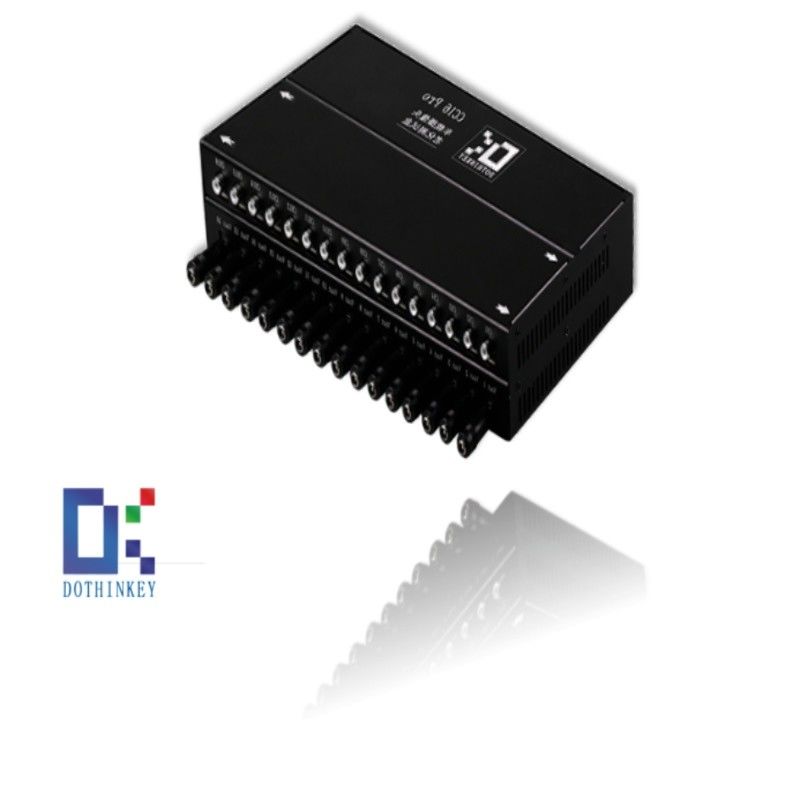

16-Channel Aging Test CC16Pro Image Frame Grabber Board For Automotive Camera

Interface	coaxial
Transmission	fiber optic
Channel	16
Speed	1.9G

1. Functions:

1) 0-18V module power supply setting.

2) Current monitoring, frame rate, error rate display.

3) Capture and save the full picture of each channel, POC power supply.

4) Deserializer board is optional.

5) Support dual fiber optic communication.

2. Characteristics of the tested camera module

Module interface	Standard FAKRA coaxial interface/standard lotus head socket + DC socket
Module type	MAXIM/TI serializer/AHD automotive module
Max. channel	16
Module power supply	A). MAXIM/TI camera module: POC power supply B). AHD camera module: separate DC interface power supply
