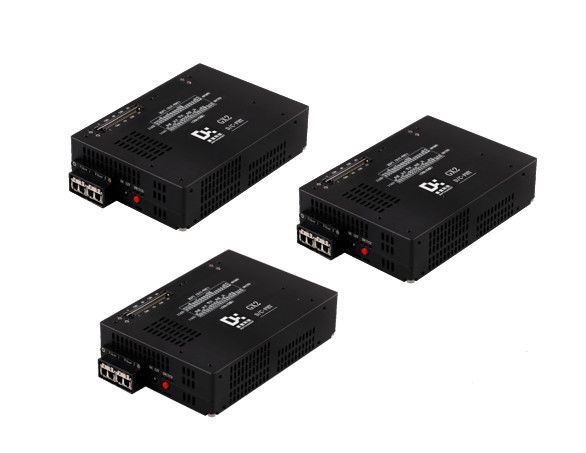

Current Detection Frame Grabber Board GPIO Voltage Measurement Sensor

Current Detection Frame Grabber Board GPIO Voltage Measurement Sensor

Current Detection Frame Grabber Board

GPIO Voltage Frame Grabber Board

Place of Origin:

shenzhen China

Brand Name:

dothinkey

Model Number:

GX2

Contact Us
Request A Quote
Current Detection Frame Grabber Board GPIO Voltage Measurement Sensor
Product Details
Power Supply:
DC 12V/3A
External Interface ESD Protection:
Human Body Model(HBM)≥±4000VMachine Model(MM)≥±200V
Sensor Interface:
MIPI D-PHY CSI MIPI C-PHY CSI
Highlight:

Current Detection Frame Grabber Board

,

GPIO Voltage Frame Grabber Board

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton packing
Delivery Time
negotiable
Payment Terms
T/T
Supply Ability
negotiable
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

1.2-channel MIPID/C-PHY image acquisition;

2.2*7 channel adjustable sensor power supply;

3. Support mA, μA, nA current detection;

4. Support 2*29 loop OS test;

5. Support LC test 2*29 circuit;

6. Support product ID customisation;

7. The external module interface is FX18-80P-0.8SV high-speed connector interface (rotary end model);

8. Support LP voltage measurement;

9. Support GPIO voltage measurement sensor.
