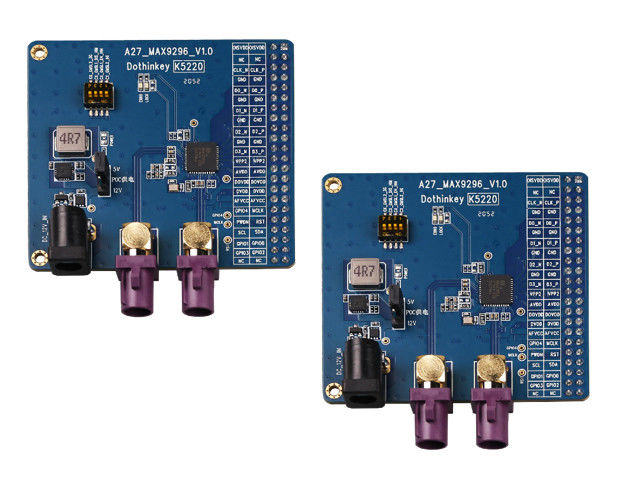

fpd link iii deserializer MIPI

1. POC power supply scheme Dual-mode power supply (selectable via J6): DC socket power supply: An external 12V/1A power adapter is required. Select 12V or 5V output via J5 jumper (set to 5V by default at the factory to prevent the module under test from being burned). Power supply of the test chamber: No external power supply is required, and the power supply is directly from the test box. The POC voltage is set through the AP configuration (J5 fails). The UC930 test box supports adjustable outputs from 4V to 18V.

2. MAX9296 chip power supply requirements Four power supplies are required from the test chamber: AFVCC & DVDD: Fixed 1.2V (needs to be locked by AP configuration). AVDD: Fixed 1.8V (AP configuration locked). DOVDD: Supports 1.8V–3.3V flexible adjustment. Note: Confirm the voltage configuration before powering on to avoid chip damage.

3. API description Reserved 2.54mm pitch 44PIN double row pins, compatible with standard MIPI test box interface.

4. MAX9296 Compatibility Notes Theoretically, GMSL1/GMSL2 multiple serializers are supported, but the corresponding register parameter group needs to be configured according to the paired model.

5. DIP switch usage specification 4-position independent DIP switch: Each person corresponds to a hardware function. Rules: Only one person is allowed to be set to ON at a time. After the modification, you need to power it on again to take effect.
