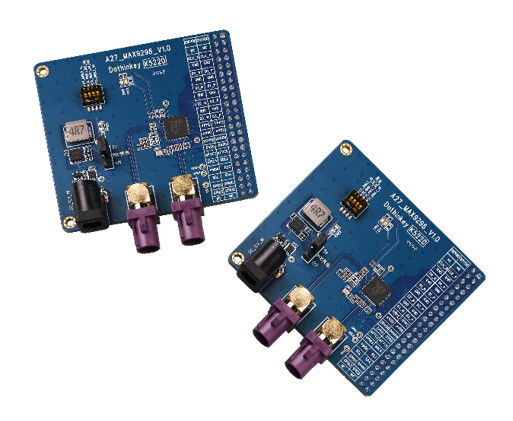

Maxim deserializer MIPI

Maxim deserializer MIPI

mipi frame grabber board

Place of Origin:

shenzhen China

Brand Name:

dothinkey

Certification:

CE

Model Number:

MAX9296

Contact Us
Request A Quote
Maxim deserializer MIPI
Product Details
Power Supply:
DC 12V/1A
Module Interface:
Maxim GMSL Coaxial
Highlight:

mipi frame grabber board

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton packing
Delivery Time
negotiable
Payment Terms
T/T
Supply Ability
negotiable
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

(1) POC power

supply Mode selection: J6 switching DC socket: 12V/1A adapter required, 12V/5V for J5 (default 5V)Power supply of test box: AP configuration 4-18V (J5 fails)

(2) Chip power

supply MAX9296 need to test chamber to provide four channels:1.2V(AFVCC/DVDD)1.8V(AVDD)1.8-3.3V (DOVDD adjustable)Note: Voltage errors can damage the chip

(3) Interface

44PIN Double Row Pin (2.54mm Pitch)Standard MIPI test box interface

(4) MAX9296

compatibility Supports GMSL1/GMSL2 serializers You need to configure the corresponding register parameters

(5) DIP switch

4-position independent switch Only 1 digit can be ON at a timeAfter the modification occurs, it must be restarted to take effect.
