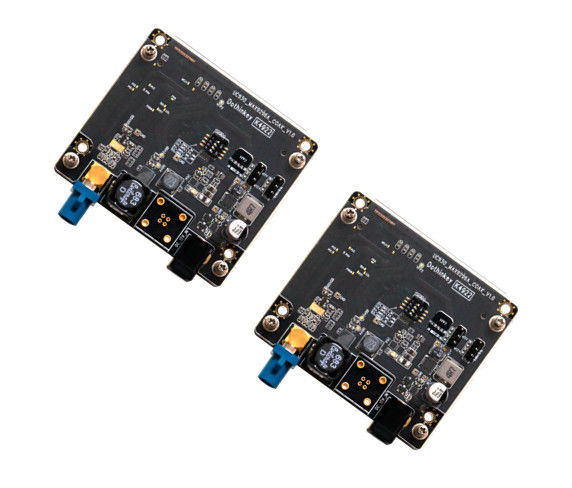

TI board MIPI

TI board MIPI

ti board mipi

Place of Origin:

shenzhen China

Brand Name:

dothinkey

Certification:

CE

Model Number:

MAX9296A

Contact Us
Request A Quote
TI board MIPI
Product Details
Power Supply:
DC 12V/1A
Module Interface:
COAX Coaxial
Highlight:

ti board mipi

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton packing
Delivery Time
negotiable
Payment Terms
T/T
Supply Ability
negotiable
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

(1) About POC power supply: This decoder board uses VPP2 to power the POC by default, and does not require an external power supply to the DC base at this time. If needed, using an external power supply, the DC socket is powered by 12V/1A, and then DC12V or DC5V is selected to power the POC via the jumper cap.

(2) About the decoder board chip power supply: The MAX9296A chip on this decoder board is supplied by the test box with four power supplies. The test box needs to be configured with this quad power supply, AVDD=1.8V, DOVDD=3.3V, DVDD=1.2V, AFVCC=1.2V. Before the drawing operation, it is necessary to ensure that the voltage does not exceed the specified range to avoid damage to the MAX9296A chip.

(3) About the interface: This decoder board adopts a 2.54mm pitch, double-row 44PIN pin header interface for docking with our test box products standard MIPI interface.
