Name: Maxim deserializer MIPI
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: MAX9296A
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

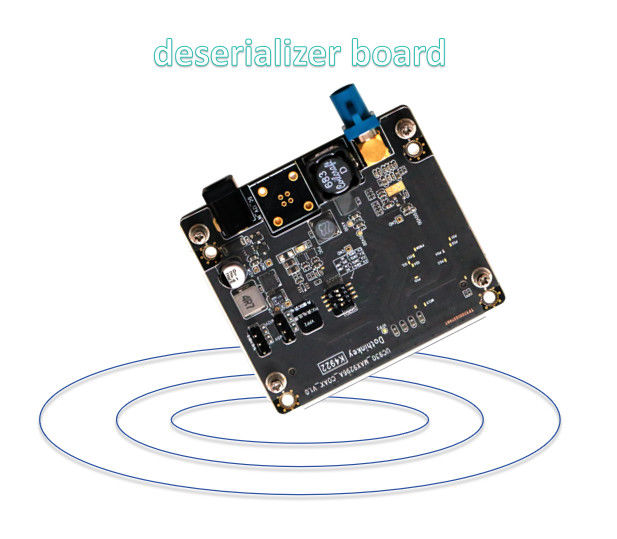

Maxim deserializer MIPI

mipi frame grabber board

Place of Origin:

shenzhen China

Brand Name:

dothinkey

Certification:

Model Number:

MAX9296A

Request A Quote

Product Details

Power Supply:

DC 12V/1A

Module Interface:

COAX Coaxial

Highlight:

mipi frame grabber board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

carton parking

Delivery Time

negotiable

Payment Terms

T/T

Supply Ability

negotiable

1. Power Supply

Default: VPP2 powered (no external adapter needed)
Optional: 12V/1A DC input (select 12V/5V via jumper)

2. MAX9296A Power Requirements

Must be supplied by test box:

AVDD = 1.8V (±5%)
DOVDD = 3.3V (±3%)
DVDD/AFVCC = 1.2V (±2%)

⚠️ Warning: Verify voltages before power-on

3. Interface

44-pin dual-row header (2.54mm pitch)
MIPI CSI-2 compatible

4. Safety Notes

Check jumpers before use
Disconnect power if abnormal
ESD protected (±8kV)
