Name: Deserializer Support Image Grabber Card With Standard MIPI Interfaces
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: MU960_Bu18RM41-C
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

Deserializer Support Image Grabber Card With Standard MIPI Interfaces

Deserializer Support Image Grabber Card

MIPI Interface Image Grabber Card

MIPI Image Grabber Card

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

MU960_Bu18RM41-C

Request A Quote

Deserializer Support Image Grabber Card With Standard MIPI Interfaces

Product Details

Brand:

Dothinkey

Model:

MU960_Bu18RM41-C

Module Interface:

Rohm Clockless Link-BDtm Coaxial

Support The Power Supply Mode:

12V Is Provided By The DC Socket

Highlight:

Deserializer Support Image Grabber Card

MIPI Interface Image Grabber Card

MIPI Image Grabber Card

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availilability

Related Products

86-755-6114-6178

Contact Now

Product Description

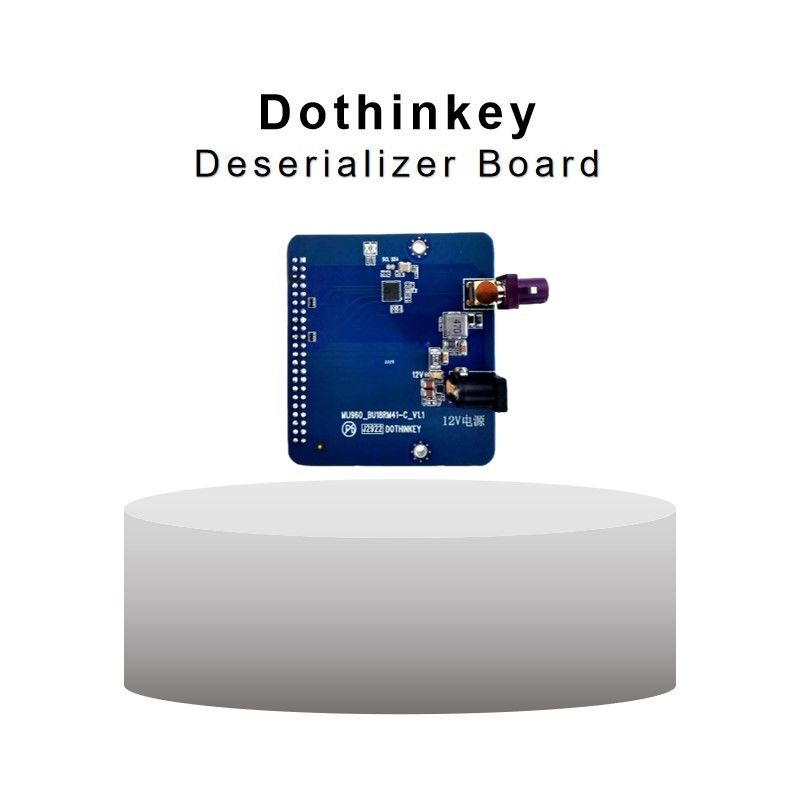

MU960_Bu18RM41-C Deserializer Support Image Grabber With Standard MIPI Interfaces

1)Use technical indicators

Electrical specification
Power supply (DC socket power supply mode)	DC12V/1A
Compatibility characteristics of deserializer board modules
Module interface	Rohm Clockless Link-BDtm coaxial
Clockless Link-BDtm rate	3.6G/Lane(max)
Other interface descriptions
Support test kits with standard MIPI interfaces
Sensor communication index
I2C rate	100KHz~1MHz
BU18RM41-C IO Level standard	1.8v
POC power supply
Support the power supply mode	12V is provided by the DC socket

2)Important Notice Before Use

POC Power Supply
- The decoder board requires an external 12V/1A power adapter via the DC jack for POC power supply.
Decoder Chip Power (BU18RM41-C)
- Only 1.8V DOVDD from the test box is required.
- Do not exceed this voltage to avoid damaging the chip.
Interface Compatibility
- Features a 44-pin dual-row header (2.54mm pitch) for standard MIPI interface connection with our test boxes.
