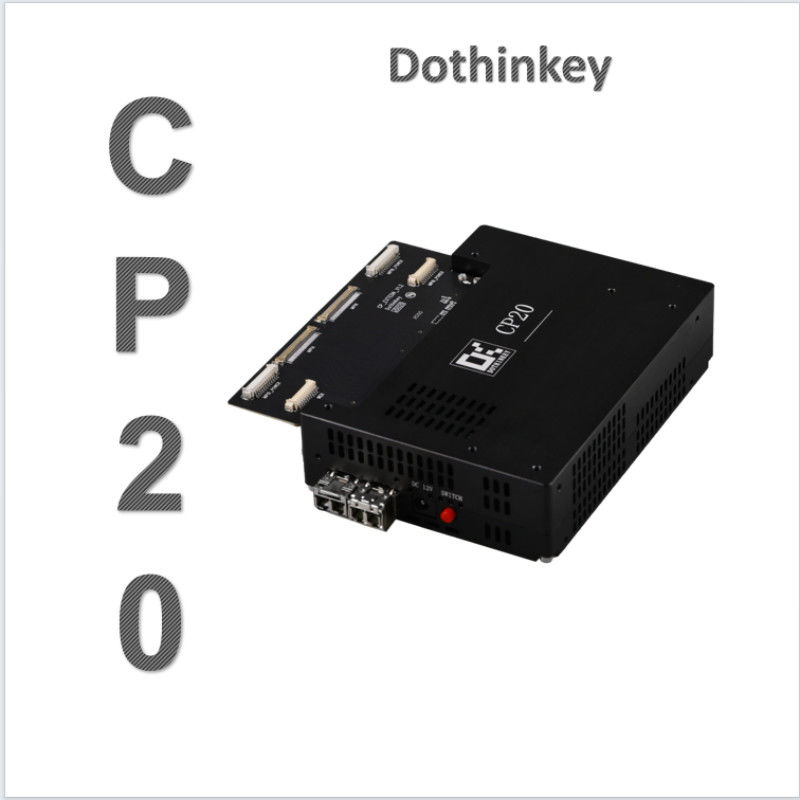

Name: Dothinkey MIPI Frame Grabber Board DSP 10 Way Power SPI 20MHz For In Vehicle Solutions
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP20
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

Dothinkey MIPI Frame Grabber Board DSP 10 Way Power SPI 20MHz For In Vehicle Solutions

Dothinkey MIPI Frame Grabber Board

Frame Grabber Board DSP

SPI 20MHz Frame Grabber Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

Dothinkey MIPI Frame Grabber Board DSP 10 Way Power SPI 20MHz For In Vehicle Solutions

Product Details

ESD Protection:

Human BodyModel(HBM)>±4000V

VAUX:

Measuring Range:1.3~8.0V, Accuracy: +_50mV

KelvinCompensation:

AVDD,AVDD2,VPP2,DOVDD,DVDDsupportKelvin Compensation.

Sensor Interface:

MIPI D-PHY CSI, MIPI C-PHY CSI

Output Voltage:

24V/DC

PowerSupply:

DC12V/8A

SPI Maximum Communication Frequency:

20MHz

Sensor Clock:

6-99MHz ±0.01MHz

Highlight:

Dothinkey MIPI Frame Grabber Board

Frame Grabber Board DSP

SPI 20MHz Frame Grabber Board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

CP20 MIPI Frame Grabber Board DSP 10-Way Power SPI 20MHz for In-Vehicle Solutions

Featutes:

1. Dual MIPI D/C-PHY Image Capture: Dual-channel MIPI D/C-PHY interfaces for high-speed image acquisition.
2. 2×5 Adjustable Sensor Power Rails: Configurable voltage outputs (e.g., 2.2V) across 2 sets of 5 channels.
3. Current Detection (mA/µA/nA): Precision measurement across milliampere, microampere, and nanoampere ranges.
4. 2×33 OS Test Channels: Open/short circuit testing for 66 signal lines.
5. Programmable Product ID: Unique device identification for system management.
6. Analog Input Interface: Supports external voltage/current signal measurement.
7. Sensor Supply Voltage Monitoring: Real-time voltage measurement for power rails.
8. Remote Kelvin Compensation: Eliminates voltage drop errors in sensor power delivery.

Dimention:

Dothinkey MIPI Frame Grabber Board DSP 10 Way Power SPI 20MHz For In Vehicle Solutions 0

DPS Maximum Load Capacity:

Channel	DPS Output Voltage	Maximum Output Current
AVDD	0.8V-3.3V	0.3A
AVDD2	0.8V-3.3V	0.3A
DVDD	0.8V-3.3V	0.1A
DOVDD	0.8V-3.3V	0.3A
VAUX	1.3V-8V	0.1A
