MIPI Image Grabber Board With SPI 20MHz And Kelvin Compensation

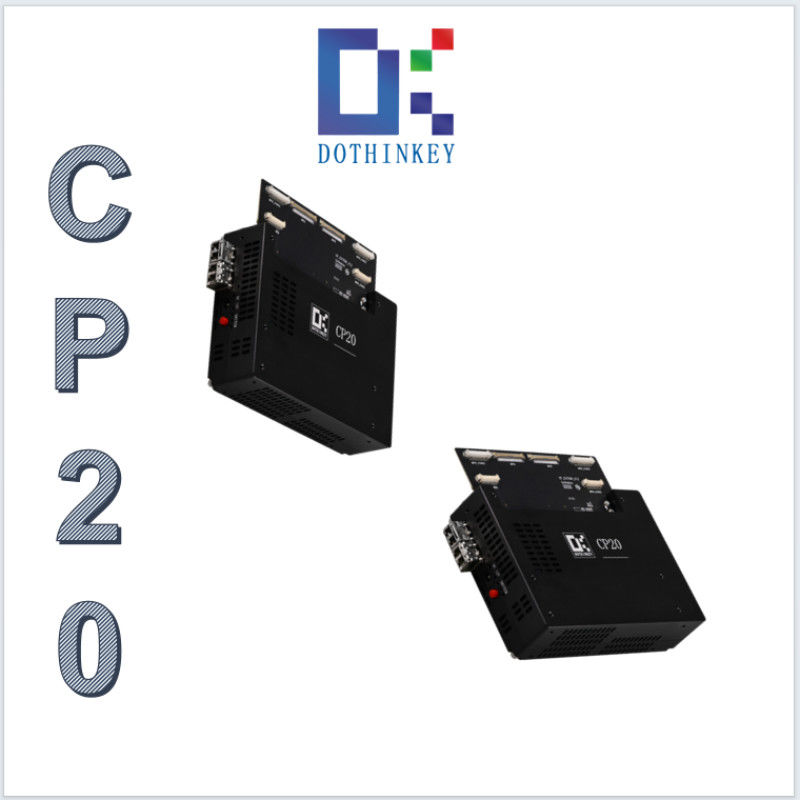

CP20 Frame Grabber Board with SPI 20MHz and Kelvin Compensation

Featutes:

1. Dual MIPI D/C-PHY Imaging Interface
   Dual-channel high-speed image acquisition compliant with MIPI D-PHY and C-PHY standards, supporting seamless integration with advanced image sensors.
2. 2×5 Programmable Sensor Power Supply
   10 independently configurable voltage rails (e.g., 2.2V, 1.8V) for precise sensor power customization, enabling multi-sensor compatibility.
3. Multi-Scale Current Detection (mA/µA/nA)
   High-precision current measurement across milliampere, microampere, and nanoampere ranges, ideal for ultra-low-power sensor characterization.
4. 66-Channel Open/Short (OS) Test Matrix
   Comprehensive connectivity validation with 66 test channels, ensuring signal integrity in high-density sensor arrays.
5. Dynamic Product ID Configuration
   On-the-fly device identification programming for traceability and system-level management in automated production environments.
6. Analog Measurement Interface
   Direct input for external analog signals (voltage/current), facilitating auxiliary diagnostics and environmental parameter monitoring.
7. Real-Time Power Rail Monitoring
   Continuous voltage measurement on sensor supply rails with ±0.5% accuracy, critical for stability in mission-critical applications.
8. Remote Kelvin Compensation Technology
   Active line resistance compensation via 4-wire Kelvin sensing, eliminating voltage drop errors in long-distance power delivery.

Schematic:

Dimention:

CP20 Product Specifications:
