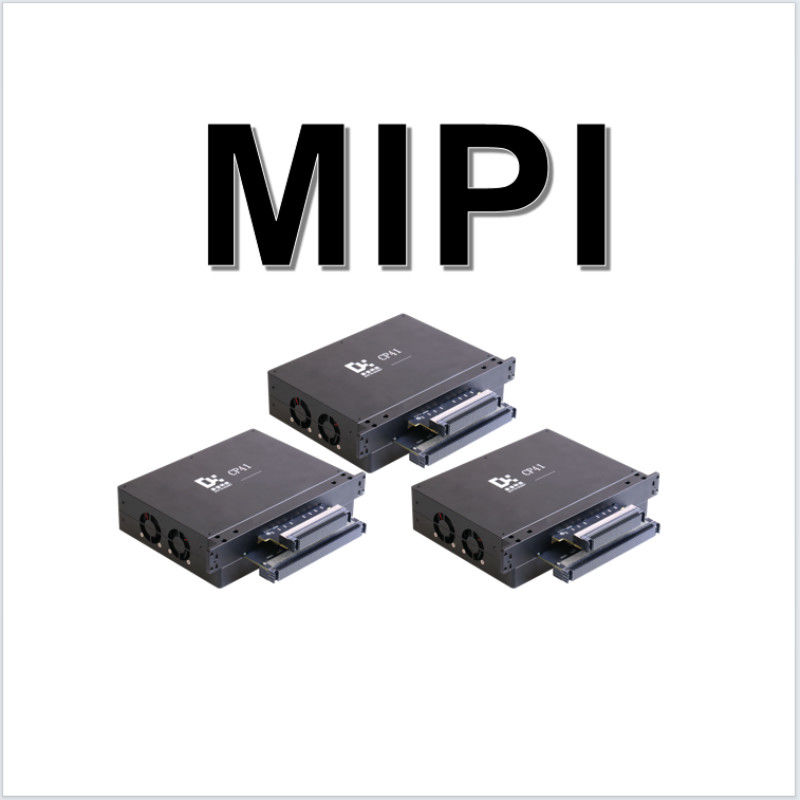

Name: Frame Grabber MIPI Board Dothinkey With USB Interface Fiber Optic Series
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

Frame Grabber MIPI Board Dothinkey With USB Interface Fiber Optic Series

Frame Grabber MIPI Board

MIPI Board Dothinkey

USB Interface Frame Grabber Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

Frame Grabber MIPI Board Dothinkey With USB Interface Fiber Optic Series

Product Details

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane

DPS Characteristics:

DWDD 0.5-3.3V Adjustable

Sensor Supply Voltage:

Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

External Interface ESD Protection:

Human Body Model (HEM) ≥ ±2000V

LC Characterization:

Supports 4X20 LC Tests

Buffer Capacity:

DDR4 8Gbit * 2

I²C Rate:

100K-1M

Analog Measurement Inputs:

Measurement Range: -2 ~ 5V, Accuracy: ±10mV

Highlight:

Frame Grabber MIPI Board

MIPI Board Dothinkey

USB Interface Frame Grabber Board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

DPS 16 Power Supplies MIPI Frame Grabber Board with USB Interface - Dothinkey Fiber Optic Series

Featutes:

1. Four-channel MIPI D-PHY image acquisition;
2. 4 × 4 channel sensor adjustable power supply;
3. Support for mA, µA, and nA current detection;
4. Support for 4 × 36 OS tests;
5. Support for analog measurement input;
6. Support for sensor power voltage measurement;
7. Support for LP voltage measurement;
8. Support for remote Kelvin compensation of sensor power supply.

Schematic:

Frame Grabber MIPI Board Dothinkey With USB Interface Fiber Optic Series 0

Dimention:

Frame Grabber MIPI Board Dothinkey With USB Interface Fiber Optic Series 1

CP41 DPS Power Applications:

Channel	Output Voltage Range	Resolution	Voltage Accurac
AVDD	0V,0.5V-5V	3mV	±1%+2 LSB
DVDD	0V,0.5V-3.3V	3mV	±1%+2 LSB
DOVDD	0V,0.5V-5V	3mV	±1%+2 LSB
VPP2	0V,0.5V-5V	3mV	±1%+2 LSB
