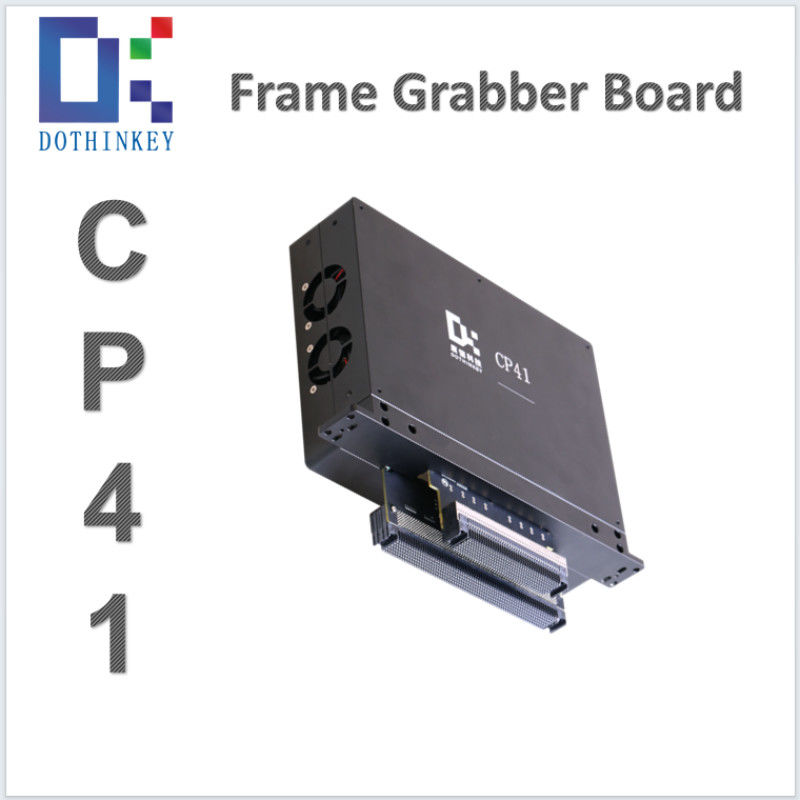

Dual Protocol MIPI D PHY/C PHY Frame Grabber Board 16 Power Supplies DPS Technology

PHY Frame Grabber Board

Dual Protocol Frame Grabber Board

Dual Protocol MIPI Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

Dual Protocol MIPI D PHY/C PHY Frame Grabber Board 16 Power Supplies DPS Technology

Product Details

External Interface ESD Protection:

Machine Model (MM) ≥ ±100V

DPS Characteristics:

4X3 Channels 0.5-5V Adjustable

MIPI Maximum Rate:

MIPI D-PHY 2.5Gbps/Lane

Sensor Clock:

6 ~ 99MHz ±0.01MHz

Analog Measurement Inputs:

Measurement Range: -2 ~ 5V, Accuracy: ±10mV

LC Characterization:

Supports 4X20 LC Tests

Highlight:

PHY Frame Grabber Board

Dual Protocol Frame Grabber Board

Dual Protocol MIPI Board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Dual Protocol MIPI D PHY/C PHY Frame Grabber Board 16 Power Supplies DPS Technology

Featutes:

1. Quad D-PHY interface supporting 2.5Gbps/lane
2. 16-bit DAC controlled 4×4 power array
3. Femtoampere-resolution current measurement
4. Multi-zone OS test architecture (4×36 nodes)
5. Guarded analog measurement path (1GΩ input Z)
6. In-situ power rail monitoring (50k samples/s)
7. LP-HS mode transition voltage analysis
8. Active Kelvin force/sense compensation
9. Sensor power-up diagnostic framework

Schematic:

Dual Protocol MIPI D PHY/C PHY Frame Grabber Board 16 Power Supplies DPS Technology 0

Dimention:

Dual Protocol MIPI D PHY/C PHY Frame Grabber Board 16 Power Supplies DPS Technology 1

CP41 LC Leakage Current Measurement:

Test Voltage Range	Number of Test Channel	Test Voltage Accuracy	Test gea	Test Range	Resolution	Precision
0.5V-3V	4X20	±20mV	mA	50uA-10mA	10uA	±1%+2 LSB
			uA	100nA-200uA	50nA	±1%+2 LSB
			uA	1nA-2uA	1nA	±1%+2 LSB
