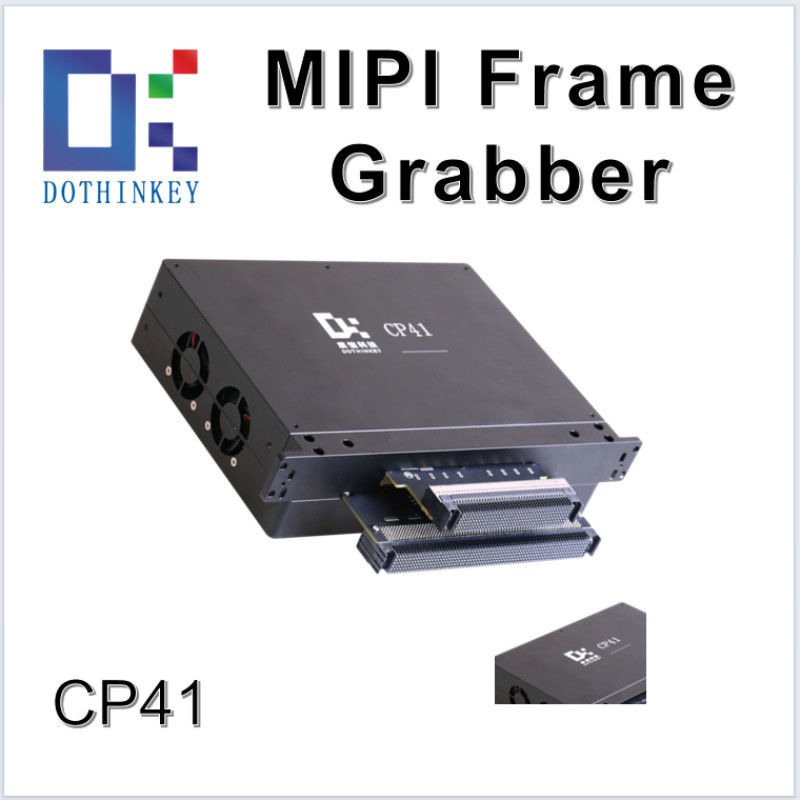

MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade

MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade

MIPI Image Grabber Board

Image Grabber Board USB 3.0

Industrial Grade MIPI Grabber Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

CE

Model Number:

CP41

Contact Us
Request A Quote
MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade
Product Details
DPS Characteristics:
4X3 Channels 0.5-5V Adjustable
PC Communication Interface:
100 Fiber Optic Interface * 2
MIPI Maximum Rate:
MIPI D-PHY 2.5Gbps/Lane
Power Supply:
DC12V/8A
Sensor IO Level:
1.25 ~ 5V
Buffer Capacity:
DDR4 8Gbit * 2
Highlight:

MIPI Image Grabber Board

,

Image Grabber Board USB 3.0

,

Industrial Grade MIPI Grabber Board

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton Packaging
Delivery Time
5-8 Working Days
Supply Ability
Stock Available
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

MIPI Frame Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade



Featutes:

1. Quad D-PHY with embedded protocol analyzer
2. 4×4 precision power matrix (10mV steps)
3. True RMS current measurement (DC-100kHz)
4. Scalable OS test infrastructure (4×36 nodes)
5. Anti-aliased analog acquisition channel
6. Power-on reset (POR) threshold verification
7. LP mode power consumption profiling
8. Adaptive Kelvin compensation loop
9. Sensor power system certification tool



Schematic:

MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade 0



Dimention:

MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade 1

MIPI Image Grabber Board USB 3.0 Support 4X36 OS Channels Industrial Grade 2
