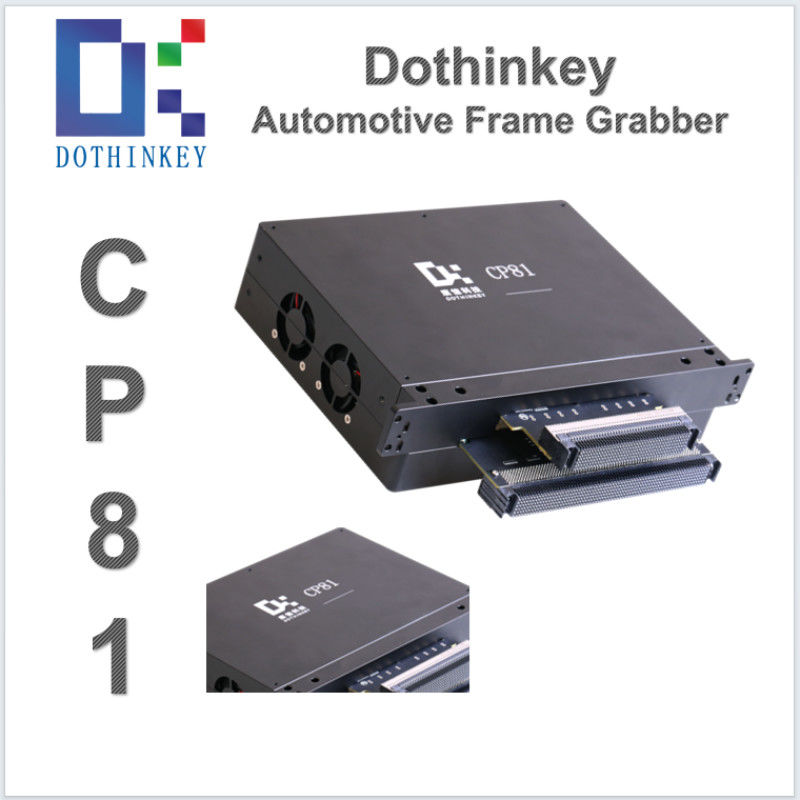

Name: MIPI Imaging Board Dothinkey DPS 48 Channel Industrial Grade Grabber Board
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

MIPI Imaging Board Dothinkey DPS 48 Channel Industrial Grade Grabber Board

MIPI Imaging Board

Imaging Board Dothinkey

Industrial Grade Grabber Board

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

MIPI Imaging Board Dothinkey DPS 48 Channel Industrial Grade Grabber Board

Product Details

Power Supply:

DC12V/8A

External Interface ESD Protection:

Machine Model >= ±100W

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane

DPS Characteristics:

8-way AUX Support 1.3-8V Adjustable, Maximum Drive Capability 0.1A

Buffer Capacity:

DDR4_86bit * 4

Kelvin Compensation:

AVID, VPP2, DOVID, DVDD Support Kelvin Compensation

Highlight:

MIPI Imaging Board

Imaging Board Dothinkey

Industrial Grade Grabber Board

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

DPS 48-Channel Power Supply Industrial Grade MIPI Frame Grabber Board CP81

Featutes:
1. Eight-channel MIPI D-PHY image acquisition
2. 8 * 6-channel sensor adjustable power supply
3. Support mA, uA, nA current detection
4. Support 8×39 OS testing
5. Support analog measurement input
6. Support sensor power voltage measurement
7. Support LP voltage measurement
8. Support sensor power Kelvin compensation

Schematic:
MIPI Imaging Board Dothinkey DPS 48 Channel Industrial Grade Grabber Board 0

Dimention:

CP81 DPS Power Supply Application:

Channel	Output Voltage Ragne	Resolution	Voltage Accuracy
AVDD	0V,0.5V-5V	3mV	±1%+2 LSB
AVDD2	0V,0.5V-5V	3mV	±1%+2 LSB
DVDD	0V,0.5V-3.3V	3mV	±1%+2 LSB
DOVDD	0V,0.5V-5V	3mV	±1%+2 LSB
VPP2	0V,0.5V-5V	3mV	±1%+2 LSB
VAUX	0V,1.3V-8V	50mV	±1%+2 LSB
