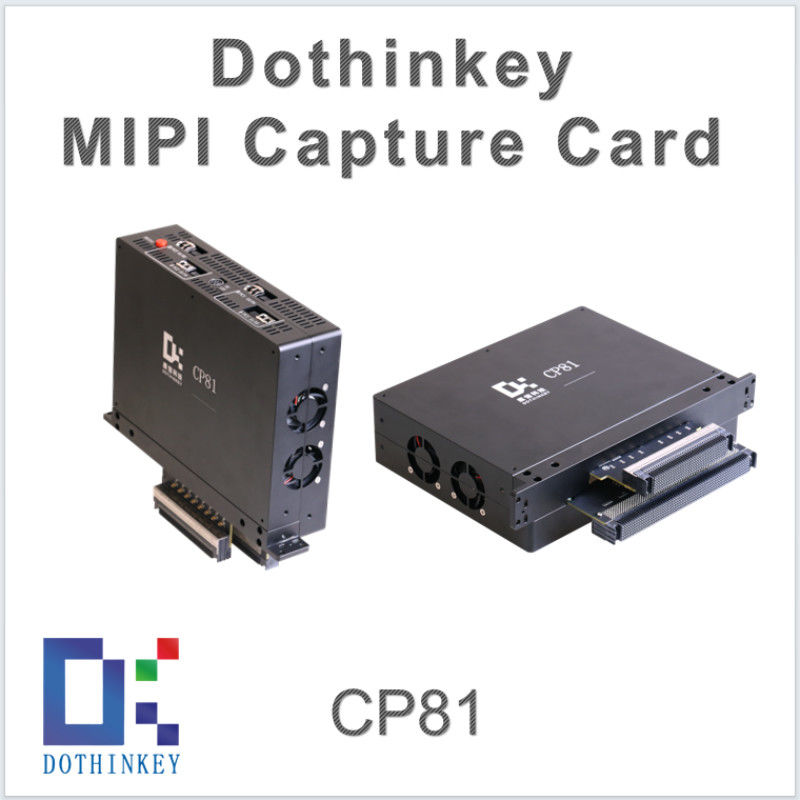

Name: Dothinkey Camera System Grabber Board MIPI D PHY Frame Grabber Card
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > Frame Grabber Board >

Dothinkey Camera System Grabber Board MIPI D PHY Frame Grabber Card

Dothinkey Camera System Grabber Board

MIPI D PHY Frame Grabber Card

Dothinkey Frame Grabber Card

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Dothinkey Camera System Grabber Board MIPI D PHY Frame Grabber Card

Product Details

DPS Output Voltage Range:

10uA~20nA;100nA~200uA;1~100nA

LC Characterization:

Supports 8×19 LC Testing

Buffer Capacity:

DDR4_86bit * 4

External Interface ESD Protection:

Machine Model >= ±100W

DPS Characteristics:

Provide 8X6 Independent Power Supply

Sensor Supply Voltage:

0.8 ~ 5V, Accuracy: ±10mV

Highlight:

Dothinkey Camera System Grabber Board

MIPI D PHY Frame Grabber Card

Dothinkey Frame Grabber Card

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

High Compatibility MIPI D PHY Frame Grabber Board for Camera Systems

Featutes:

1. Multi-sensor imaging platform with D-PHY 1.2 support
2. Digital-controlled power system (8×6 configurable outputs)
3. Ultra-sensitive current monitoring (1mA to 1nA ranges)
4. 8×39 optical test pattern generation/analysis
5. Universal analog measurement front-end
6. Power integrity monitoring subsystem
7. LP mode electrical validation capability
8. 4-terminal measurement for supply line compensation

Schematic:

Dothinkey Camera System Grabber Board MIPI D PHY Frame Grabber Card 0

Dimention:

Dothinkey Camera System Grabber Board MIPI D PHY Frame Grabber Card 1

CP81 Sensor Communication Indicators:

Sensor Communication Indicators
I²C Rate	100K-1M
Sensor Clock	6 - 99MHz±0.01MHz
Sensor IO Level (Following DOVDD)	1.25 - 5V
