Name: Single Camera Frame Grabber MIPI Frame Grabber FM101 Dothinkey
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: FM101
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Frame Grabber >

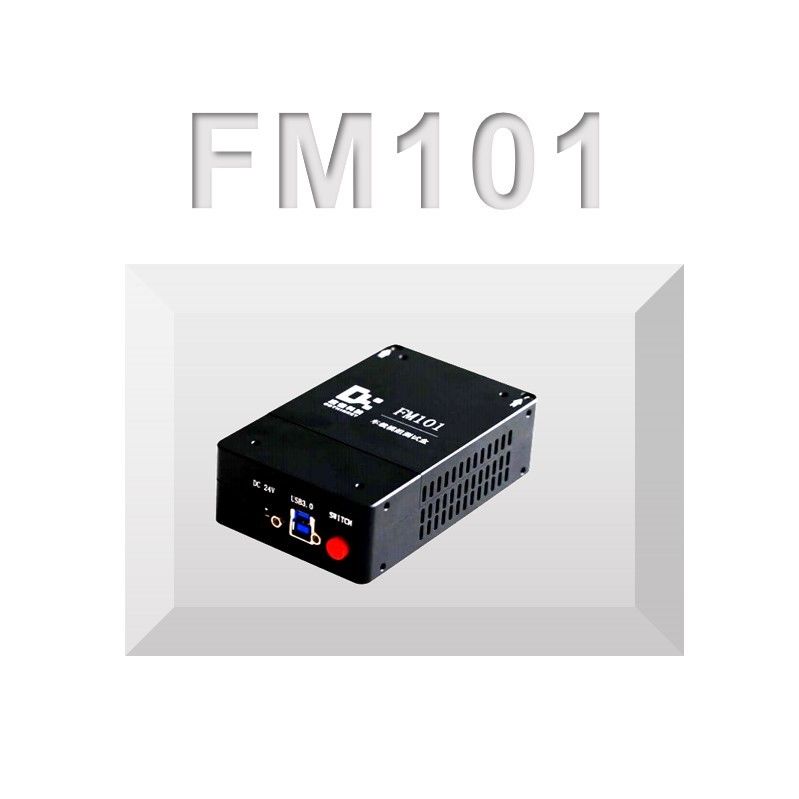

Single Camera Frame Grabber MIPI Frame Grabber FM101 Dothinkey

Dothinkey Single Camera Frame Grabber

Camera Frame Grabber MIPI

MIPI Frame Grabber FM101

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

FM101

Request A Quote

Product Details

Brand:

Dothinkey

Model:

FM101

Working Temperature:

10℃ ~ 35℃

Storage Temperature:

-20℃ ~ 70℃ < 30%

Working Humidity:

0℃ ~ 40℃ < 80%

Highlight:

Dothinkey Single Camera Frame Grabber

Camera Frame Grabber MIPI

MIPI Frame Grabber FM101

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availability

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey Single Camera Interface MIPI Frame Grabber FM101

Product Functional Overview

Product Features:

1.Camera Testing Solution

1)Supports single-camera applications

2)Compatible with both FAKRA coaxial (single-ended) and STP differential interfaces for automotive module testing

2. Power Supply

1)Wide voltage range: 0.8V-18V configurable power supply

2)Monitoring , Diagnostics

3)Real-time current monitoring

4)Frame rate measurement

3.Error detection
1)Frame errors
2)Link errors
3)Decoding errors

4)Image Capture,Power Management

5)Full module image capture and storage

6)POC (Power over Coax) support

4.Power supply
1)Voltage measurement

2)Dedicated LED power supply for vehicle modules

3)Flexible Configuration

4)Selectable decoupling solutions

5)Supports MAXIM and TI serialization modules

6)Compatible with most market-available serialization solutions

POC power supply specifications

Programmable power supply range and accuracy
Channel	Output voltage range	Step forward	No-load output voltage accuracy	Maximum output current	Current acquisition resolution	Current acquisition accuracy	POC voltage acquisition accuracy
CH1 CH2	0.8V-18V	0.1V	0.8V-6V :±60mV 6V-18V :±1%	1A	0.1mA	0-0.05A :±1.5mA 0.05A-1A :±1%	0.8V-6V :±60mV 6V-18V :±1%
