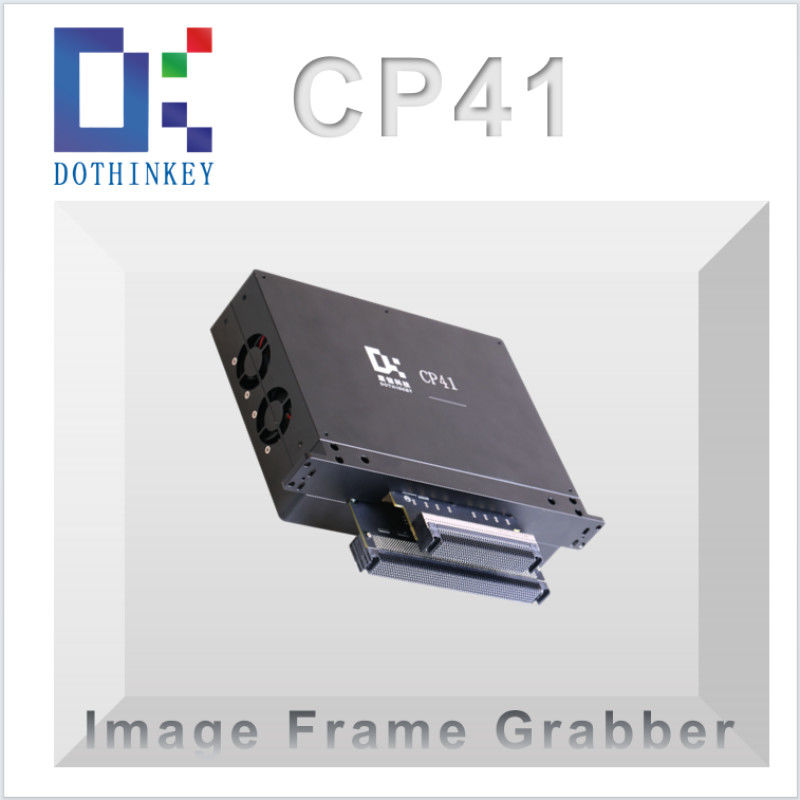

Name: Multi Channel 4X20 LC MIPI Camera Frame Grabber With CSI Interface
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Frame Grabber >

Multi Channel 4X20 LC MIPI Camera Frame Grabber With CSI Interface

4X20 LC MIPI Frame Grabber

CSI MIPI Frame Grabber

MIPI Camera Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

Multi Channel 4X20 LC MIPI Camera Frame Grabber With CSI Interface

Product Details

I²C Rate:

100K-1M

DPS Characteristics:

Supports 16 Adjustable Power Supplies

External Interface ESD Protection:

Human Body Model (HEM) ≥ ±2000V

MIPI Maximum Rate:

CH1/CW2/CW3/CW4

LP Voltage Measurement:

Measurement Range: 0 ~ 1.4V, Accuracy: ±10mV

Sensor Interface:

MIPI D-PHY CSI

LC Characterization:

Supports 4X20 LC Tests

Sensor Supply Voltage:

Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

Highlight:

4X20 LC MIPI Frame Grabber

CSI MIPI Frame Grabber

MIPI Camera Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Multi-Channel 4X20 LC MIPI Frame Grabber with CSI Interface for Camera Systems

Featutes:

1. MIPI D-PHY v1.2 quad receiver with BERT
2. 16-channel digital power system (0-5V @ 3A)
3. 7½-digit current measurement resolution
4. Daisy-chained OS test matrix (4×36 nodes)
5. Simultaneous sampling analog inputs
6. Power sequencing event capture
7. LP mode voltage dropout analysis
8. Active impedance balancing network
9. Sensor power-on waveform validation

Schematic:

Multi Channel 4X20 LC MIPI Camera Frame Grabber With CSI Interface 0

Dimention:

Multi Channel 4X20 LC MIPI Camera Frame Grabber With CSI Interface 1

CP41 OS (Open/Short) applications:

Test Voltage Setting Range	Test Voltage Resolution	Test Current Range	Test Current Resolution	Number of Test Channels	OS Test Resolution
0.5-2V	0.1V	0-10mA	0.1mA	4X36	0.1mV
