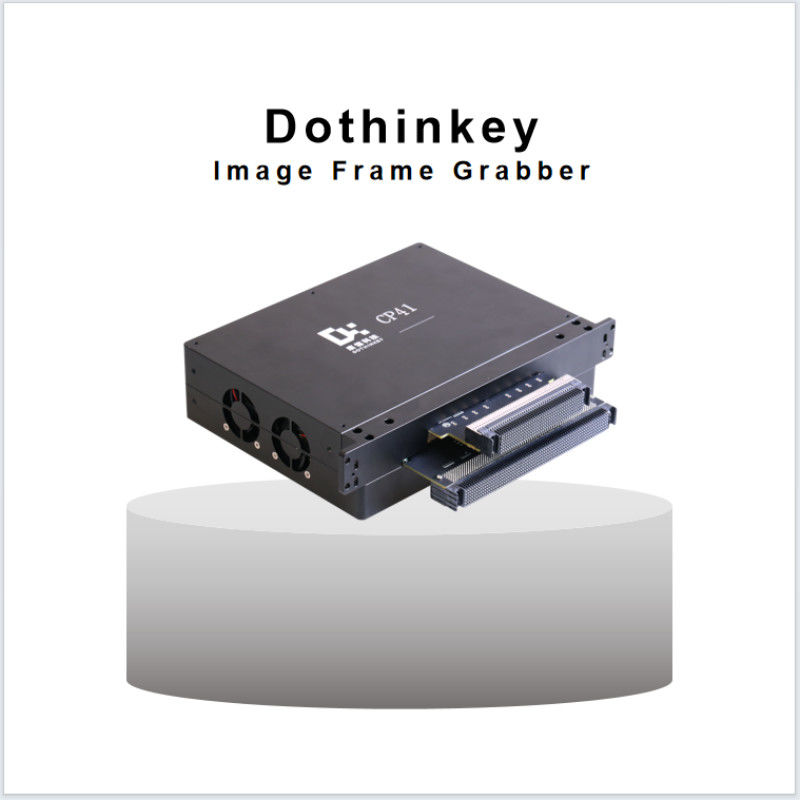

Name: 2.5Gbps / Lane Industrial Frame Grabber CSI/D PHY MIPI Capture Card
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > Industrial Frame Grabber >

2.5Gbps / Lane Industrial Frame Grabber CSI/D PHY MIPI Capture Card

2.5Gbps Industrial Frame Grabber

Industrial MIPI Capture Card

CSI/D PHY MIPI Capture Card

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

2.5Gbps / Lane Industrial Frame Grabber CSI/D PHY MIPI Capture Card

Product Details

Height Width Length:

59mm * 180.2mm * 250mm

Sensor Interface:

MIPI D-PHY CSI

DPS Characteristics:

4X3 Channels 0.5-5V Adjustable

MIPI Maximum Rate:

MIPI D-PHY 2.5Gbps/Lane

PC Communication Interface:

100 Fiber Optic Interface * 2

LP Voltage Measurement:

Measurement Range: 0 ~ 1.4V, Accuracy: ±10mV

Kelvin Compensation:

AWDD, VPP2, DOWDD, DWDD Support Kelvin Compensation

External Interface ESD Protection:

Machine Model (MM) ≥ ±100V

Highlight:

2.5Gbps Industrial Frame Grabber

Industrial MIPI Capture Card

CSI/D PHY MIPI Capture Card

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Industrial Frame Grabber 4X36 Channels OS Support MIPI CSI/D PHY Capture Card

Featutes:

1. Quad-channel MIPI D-PHY v1.2 compliant image acquisition interface
2. 4×4 configurable sensor power matrix (±1% voltage accuracy)
3. Tri-range current sensing with auto-ranging (nA to mA resolution)
4. 144-point open/short (OS) test matrix (4×36 architecture)
5. 24-bit delta-sigma ADC analog measurement input
6. Real-time sensor rail voltage monitoring (0-5V range)
7. Low-power mode voltage characterization (LP state analysis)
8. 4-wire remote Kelvin compensation for power delivery networks
9. Integrated sensor parametric validation suite

Schematic:

2.5Gbps / Lane Industrial Frame Grabber CSI/D PHY MIPI Capture Card 0

Dimention:

2.5Gbps / Lane Industrial Frame Grabber CSI/D PHY MIPI Capture Card 1

CP41 DPS Power Applications:

Channel	Gear	Current detection range	Resolution	Accuracy(25℃)
AVDD DVDD DOVDD VPP2	mA	0.5mA~Maximum Output Current	0.1mA	±0.7%+5LSB
	uA	10uA~20mA	0.1uA	±0.7%+5LSB
	nA	100nA~200uA	10nA	±0.7%+5LSB
