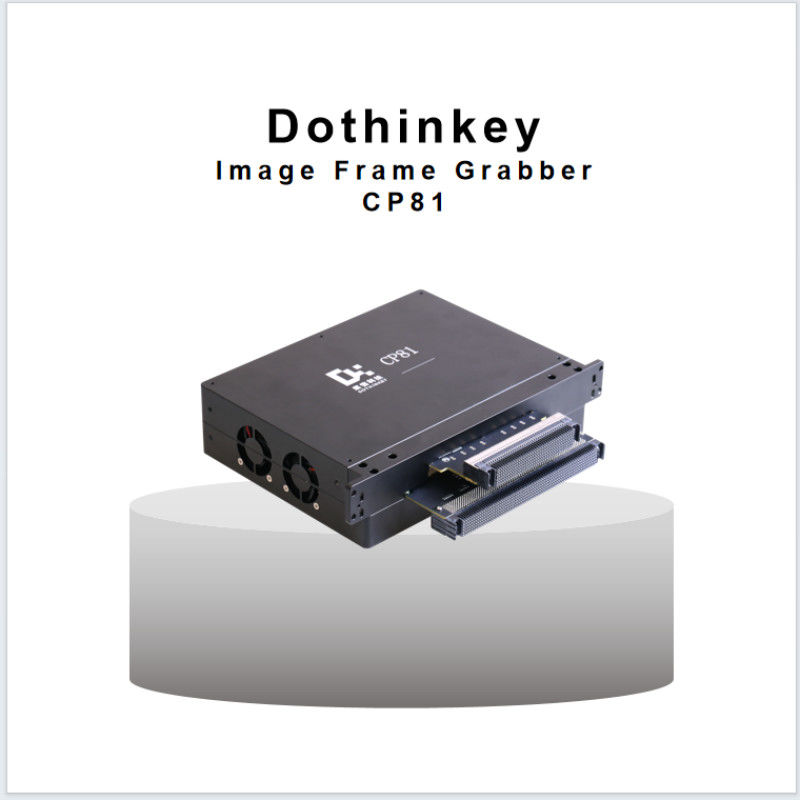

Name: 2.5Gbps Industrial Frame Grabber Board CP81 With CSI/C PHY Optical Interface
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > Industrial Frame Grabber >

2.5Gbps Industrial Frame Grabber Board CP81 With CSI/C PHY Optical Interface

2.5Gbps Industrial Frame Grabber

Industrial Frame Grabber Board

CSI/C PHY Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Product Details

Analog Measurement Inputs:

Measurement Range: -2 ~ 5V, Accuracy: ±10mV

MIPI Maximum Rate:

2.5Gbps/Lane

DPS Characteristics:

Provide 8X6 Independent Power Supply

OS Characteristics:

Supports 8×39 OS Testing

LP Voltage Measurement:

Measurement Range: 0 ~ 1.4V, Accuracy: ±10mV

Power Supply:

DC12V/8A

Highlight:

2.5Gbps Industrial Frame Grabber

Industrial Frame Grabber Board

CSI/C PHY Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Industrial Frame Grabber Board CP81 with CSI/C PHY Optical Interface

Featutes:

1. Octa-channel D-PHY compliant image acquisition subsystem
2. Modular power architecture with 48 individually adjustable outputs
3. Three-decade current detection system (1mA - 1nA FSD)
4. Matrix-based optical sensor validation platform (8×39 grid)
5. Multipurpose analog measurement front-end
6. Dynamic power supply voltage tracking
7. Low-power signaling voltage analysis
8. 4-terminal sensing for power path compensation

Schematic:

2.5Gbps Industrial Frame Grabber Board CP81 With CSI/C PHY Optical Interface 0

Dimention:

2.5Gbps Industrial Frame Grabber Board CP81 With CSI/C PHY Optical Interface 1

CP81 Sensor Power Voltage Measurement Application:

Sensor Power	Measurement Voltage Range	Accuracy	Number of Test Channels
AVDD/AVDD2/DOVDD/DVDD/VPP2	0.5~5V	±10mV	8X5
