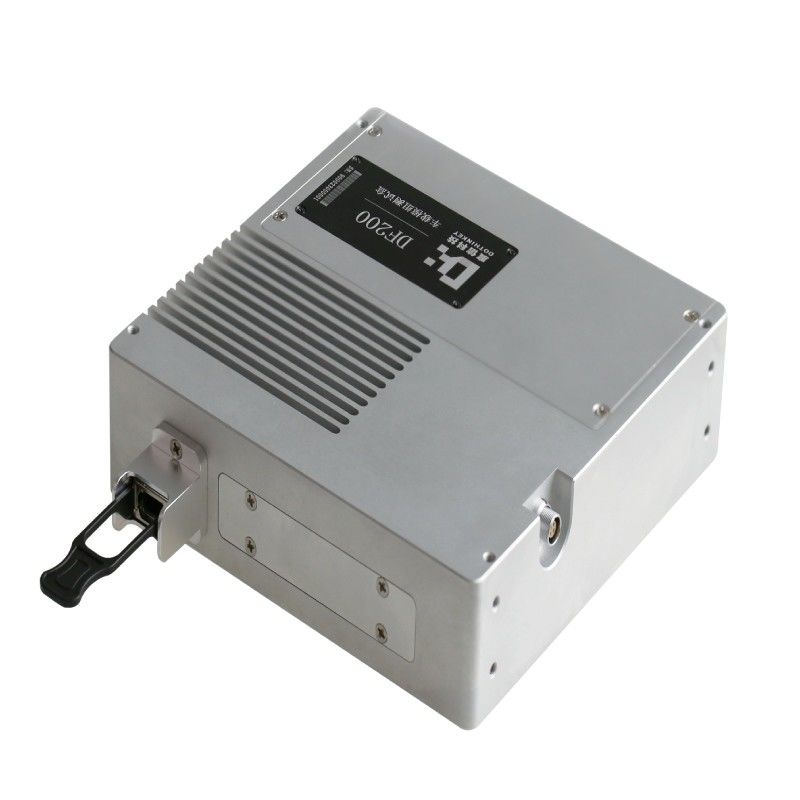

DF200 Dothinkey Image Frame Grabber For Automotive Module EMC Testing

DF200 Dothinkey Image Frame Grabber For Automotive Module EMC Testing

DF200 Dothinkey

Dothinkey Image Frame Grabber

EMC Testing Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

CE

Model Number:

DF200

Contact Us
Request A Quote
Product Details
Color:
Gray
Input Voltage:
100V/AC ~ 240V/AC; 50Hz/60Hz
Output Voltage:
24V/DC
Output Current:
5A
Power Supply:
DC 24V/5A
External Interface ESD Protection:
Uman Body Model (HBM) ≥ ±8000V (excluding Interface Part)
Working Temperature:
10℃ ~ 35℃

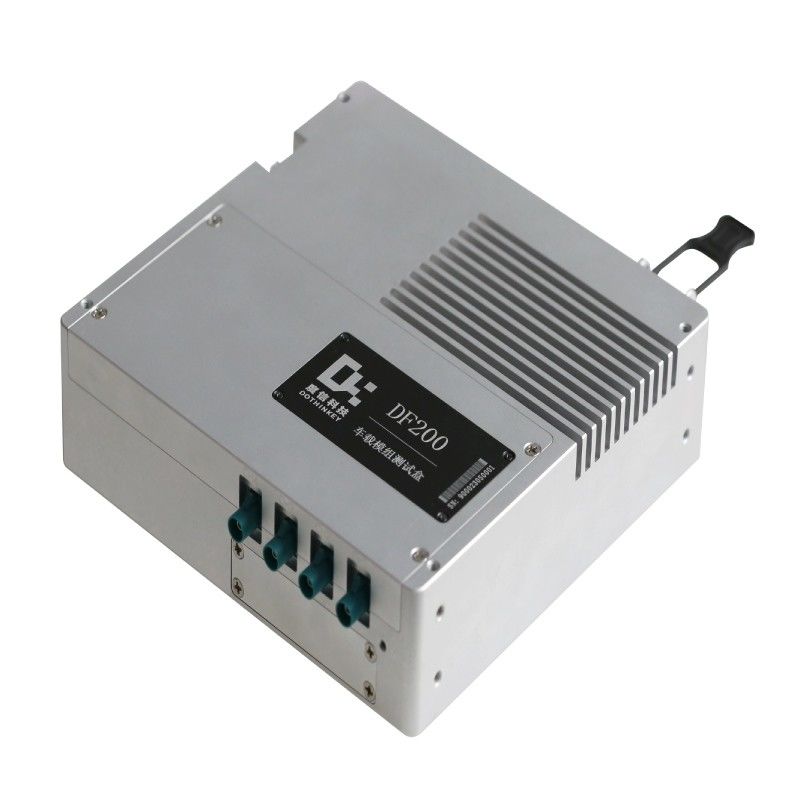

Module Interface:
Standard FAKRA Coaxial Interface
Highlight:

DF200 Dothinkey

,

Dothinkey Image Frame Grabber

,

EMC Testing Frame Grabber

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton Packaging
Delivery Time
5-8 Working Days
Payment Terms
T/T
Supply Ability
Stock Available
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

DF200 Image Grabber For Automotive Module Test EMC



1. Flexibly select Channels 1-4;
2. 0.8-18V module power supply setting;
3. Current monitoring, frame rate/error frame display, Link error statistics, Decoding error statistics;
4. Capture and save the entire image of each channel, powered by POC;
5. Flexibly seletc decoupling solutions as needed (for MAXIM/TI serialized car modules, compatible with the vast majority of serialization scheme modules currently available on the market)
6. Support 40G fiber optic communication (using one to four fiber optic cables, compatible with 10G cards, and bandwidth determined by the number of 10G ports connected)
Decision);
7. Capable of supporting automotive module EMC testing at the automotive specification level (provided that the automotive module itself can pass the automotive specification level EMC).





EMC Test Results for Automotive Camera Project

BCI: Pass Level 2

ESD: Direct discharge: ①contact discharge: ±15KV; ②Air discharge: ±25KV

          Indirect discharge: ①coupling plate discharge: ±25KV

Transient coupling anti-interference: fast pulse: +100V/us, -150V/us

RE: Pass class 5 level; test frequency channel: 300MHz-2.5GHz

...
