GX4 China Industrial Frame Collector

GX4 China Industrial Frame Collector

gx4 mipi frame grabber

gx4 camera frame grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Model Number:

GX4

Document:

GX4 Products SpecificationV....0.pdf

Contact Us
Request A Quote
GX4 China Industrial Frame Collector
Product Details
Highlight:

gx4 mipi frame grabber

,

gx4 camera frame grabber

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Payment Terms
T/T
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

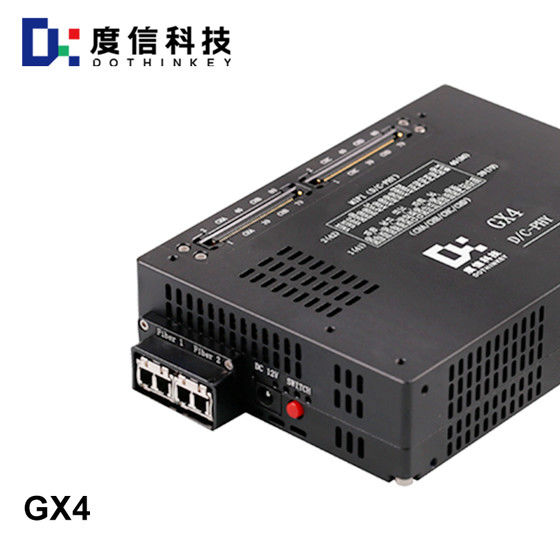

GX4 China Industrial Frame Collector


Image Grabber GX4 with several functions. Among them, the Sensor compatibility feature is strong.
It supports MIPI D-PHY CSI and MIPI C-PHY CSI.


Dimensions are as follows:
Height 35mm ± 0.2mm
Width 100mm ± 0.2mm
Length 140mm ± 0.2mm


DPS Features
Support 28-channel power supply adjustable Provide 4X7-channel independent power supply, of which 4X4-channel 0.8-3.3V adjustable, max. driving capacity 1A; 4X2-channel 0.8-5V adjustable, max. driving capacity 1A, 4X1-channel 0.8-8V adjustable, max. 3A driving capacity.


Sensor communication index
I2C rate 100K-1M
SPI Maximum communication frequency 20MHz
Sensor Clock 6 - 99MHz ±0.01MHz
Sensor IO level (following DOVDD) 1.2 - 3.3V


For more information, please contact us.
