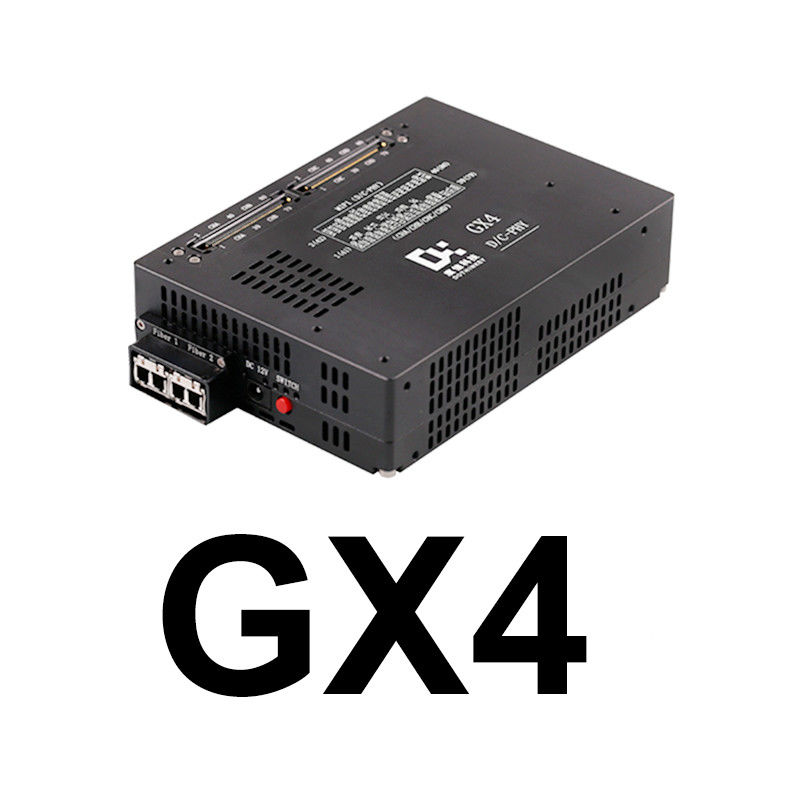

GX4 Multifunction Image Frame Grabber Industrial Products MIPI Grabber

GX4 Multifunction Image Grabber Industrial Products

Description of GX4 Series Product Features.

High-efficiency Image Acquisition Capability
The GX4 series supports 4-channel MIPI D/C-PHY image acquisition, which is capable of quickly processing high-speed image data to meet the needs of a variety of sensor application scenarios.

Flexible Power Management
Provides 4*7 channels of sensor power supply and supports flexible power regulation to ensure stable operation of the device under different working conditions.

Wide Range Current Detection
Supports a wide range of current detection from milliamps (mA) to nano-amps (nA) to meet the needs of high-precision current testing.

Comprehensive OS Test Functions
Equipped with 4*29-channel OS test function, it can efficiently complete the optical characteristic test of the sensor to ensure stable performance.

Accurate LC test capability
Supports 4*29-channel LC test, which is suitable for the accurate measurement of inductance and capacitance parameters, enhancing the comprehensiveness of the test.

Flexible Product ID Configuration
Supports flexible product ID settings, which facilitates equipment identification and management, and simplifies the production and testing process.

High-speed connector interface design
The external module interface adopts a high-speed connector (FX18-80P-0.8SV) to ensure high efficiency and stability of data transmission, and is compatible with a variety of modular designs.

Low Power Voltage Monitoring
Provides low-power (LP) voltage measurement function, suitable for voltage monitoring of low-power sensors to ensure the performance of devices in low-power mode.

Real-time GPIO Voltage Monitoring
Supports sensor GPIO voltage measurement, which can monitor the input and output voltage of sensors in real time, further improving the accuracy of the test.

Summary
With its efficient acquisition, flexible power management, comprehensive test functions and high-speed interface design, the GX4 series provides a powerful and reliable solution for sensor testing.
