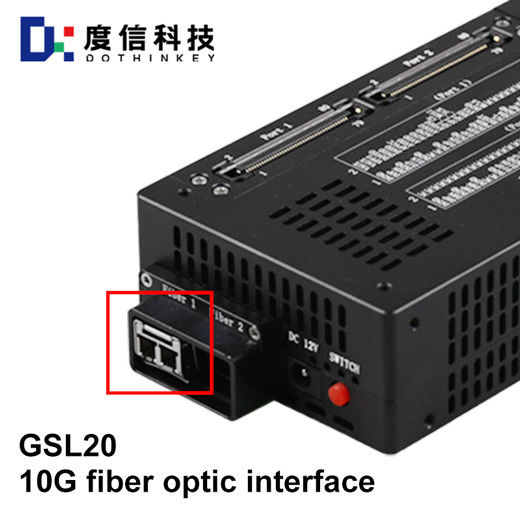

China Image Grabber GSL20

Made in China Image Grabber GSL20

The Image Grabber for Dothinkey is a high-performance test equipment designed for testing and verification of camera modules, sensors and other devices. Its main features include:
High compatibility: Supports a variety of interface standards, such as SLVS-EC, MIPI, DVP, etc. for a wide range of sensors and camera modules.

High-speed data transmission: Supports data transmission rate up to 2.304Gbps/Lane and up to 16 Lane data channels to ensure efficient data acquisition and transmission.

Flexible power regulation: Provides 7 independent power supplies, 6 of which can be adjusted in the range of 0.8-3.3V, with a maximum driving capacity of 1A; 1 of which can be adjusted in the range of 0.8-8V, with a maximum driving capacity of 3A.

Powerful OS test function: supports 51-channel OS test, with high-precision open and short circuit detection technology, test results are closer to the real value.

High-precision current detection: the minimum resolution can be up to 10nA, which can accurately measure the standby current of the sensor.

Compact size and high reliability: compact design, suitable for automation equipment applications, with high reliability.

Advantage
High performance and high compatibility: Supports a variety of interfaces and high-speed data transmission, suitable for a variety of sensors and camera modules to meet different testing needs.

Flexible power regulation: Provides a variety of power regulation options to adapt to the power supply needs of different devices.
High-precision testing: Equipped with high-precision current detection and OS testing functions to ensure the accuracy of test results.
Suitable for automation applications: Compact size and high reliability make it ideal for automation equipment applications.
Wide range of application scenarios: suitable for testing a wide range of devices such as automotive cameras, cell phone camera modules, DVS modules, etc.

Application Scenarios
Vehicle camera testing: supports the testing of various vehicle camera modules and meets the requirements of vehicle regulations.
Cell phone camera module testing: suitable for cell phone camera module performance testing.
Automation equipment testing: suitable for camera module testing in automated production lines.
DVS module testing: supports parallel DVS module testing up to 16bits bit width.

Image Grabber provides a reliable solution for camera module and sensor testing with its high performance, high compatibility and high precision testing capability.
