High Resolution Image Grabber Dothinkey Image Grabber GSL20

High Resolution Image Grabber Dothinkey Image Grabber GSL20

High Resolution Image Grabber

Dothinkey Image Grabber GSL20

Image Grabber Dothinkey

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Model Number:

GSL20

Contact Us
Request A Quote
High Resolution Image Grabber Dothinkey Image Grabber GSL20
Product Details
Highlight:

High Resolution Image Grabber

,

Dothinkey Image Grabber GSL20

,

Image Grabber Dothinkey

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Delivery Time
Negotiable
Payment Terms
T/T
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

High Resolution Image Grabber



Dothinkey Image Grabber GSL20, Important Parameters at a Glance
Electrical Specifications
Power supply DC12V/3A
External Interface ESD Protection Human Body Model (HBM) ≥ ±4000V
Machine Model (MM) ≥ ±200V



Dimensions
Height 35mm ± 0.1mm
Width 75mm ± 0.1mm
Length 130mm ± 0.1mm



Sensor Compatibility
Sensor Interface SLVS-EC
Rate 2.304Gbps/Lane1
Data Channel Maximum 16Lane Support



DPS Features
Supports 7-channel adjustable power supply Provides 7-channel independent power supply, of which 6 channels are adjustable from 0.8 to 3.3V with a maximum driving capacity of 1A, and the remaining 1 channel is adjustable from 0.8 to 8V with a maximum driving capacity of 3A.



OS Characteristics
Supports 51-channel OS test


PC Interface & Buffer

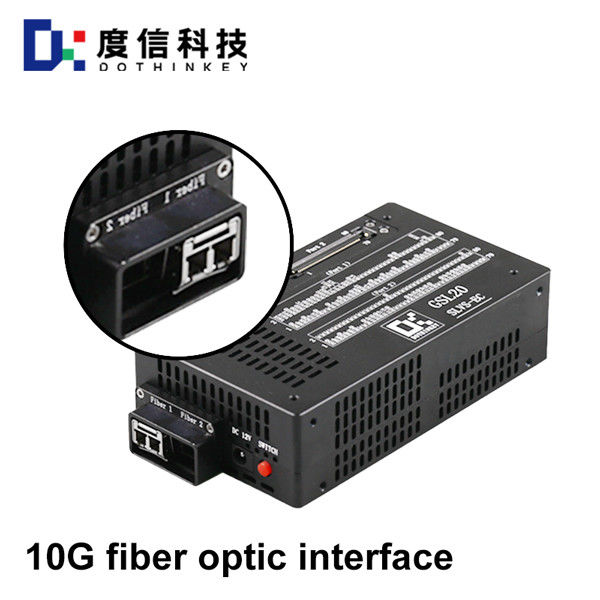

PC communication interface 10G optical fiber interface*1


Buffer capacity DDR4_8Gbit
Sensor Communication Specifications
I²C rate 100K~1M
SPI Maximum communication frequency 20MHz
Sensor Clock 72MHz±0.1MHz
Sensor IO Level (following DOVDD) 1.3 ~ 3.3V
