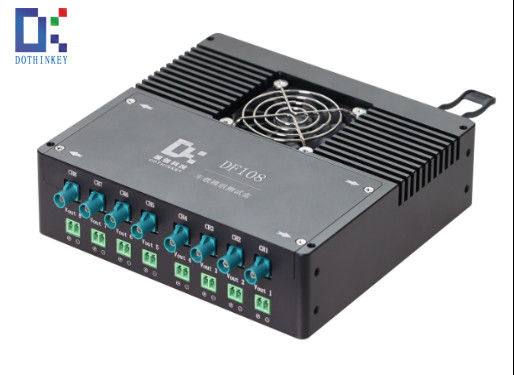

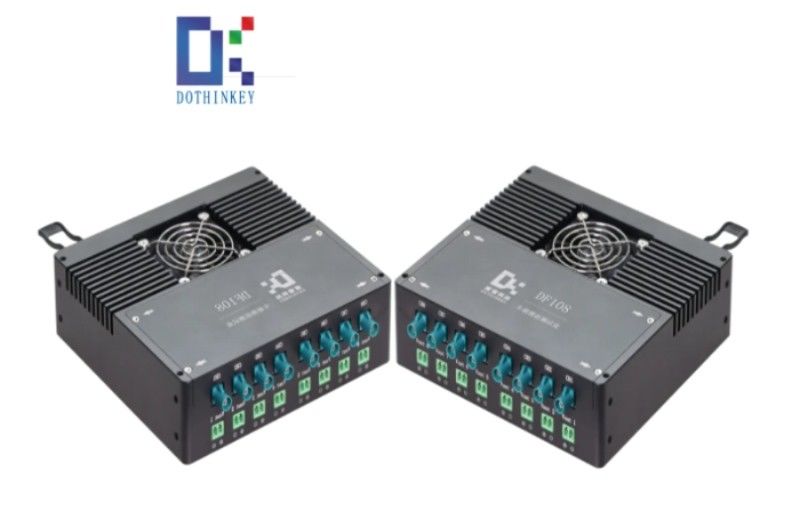

DF108 Series MIPI Frame Grabber For High Speed Automotive DV And PV Aging Test

Test Box DF108 Series Image Grabber for High-speed Automotive DV and PV Aging Test

Support Maxim lll and Tl IV serializer scheme.
8 channels flexible selection,
Stable and reliable without interference.

Functions:

1.Flexible selection of 1-8 channels;

2.0.8V-18V power supply settings;

3.Current monitoring, frame rate, error frame display, Link Error statistics, Decoding Error statistics;

4.Full image capture and save for each channel, powered by POC

5.The deserializer can be selected on demand (for MAXIM serialization /TI serialization and other vehicle modules, it can be compatible with most serialization modules on the market at present).

6.Supports 40G fiber optic communication (using a one-to-four fiber optic cable, compatible with 10G cards, with bandwidth determined by the number of connected 10G ports).

7.Supports external POC power input (all 8 channels support external input, but only one can be used at a time)

Supported functions:

1.One image grabber can simultaneously support aging testing for up to 8 channels of the same type automotive camera modules.

2.Support real-time frame rate display, error frame display, Link error statistics, Decoding error statistics.

3.Supports full image capture and saving of each channel.

4.Supports multiple serialization scheme modules. Decoding schemes are optional and test channels can be flexibly selected.

FAQ:

Q1. Are you a manufacturer?

A1: Yes, we are the original manufacturer factory since 2006, located in Shenzhen, China.

Q2: What is your MOQ?

Q2: 1pcs.

Q3: How about the delivery?

A3: We have DHL/Fedex account, so we can help arrange the pick-up if you have as well.
