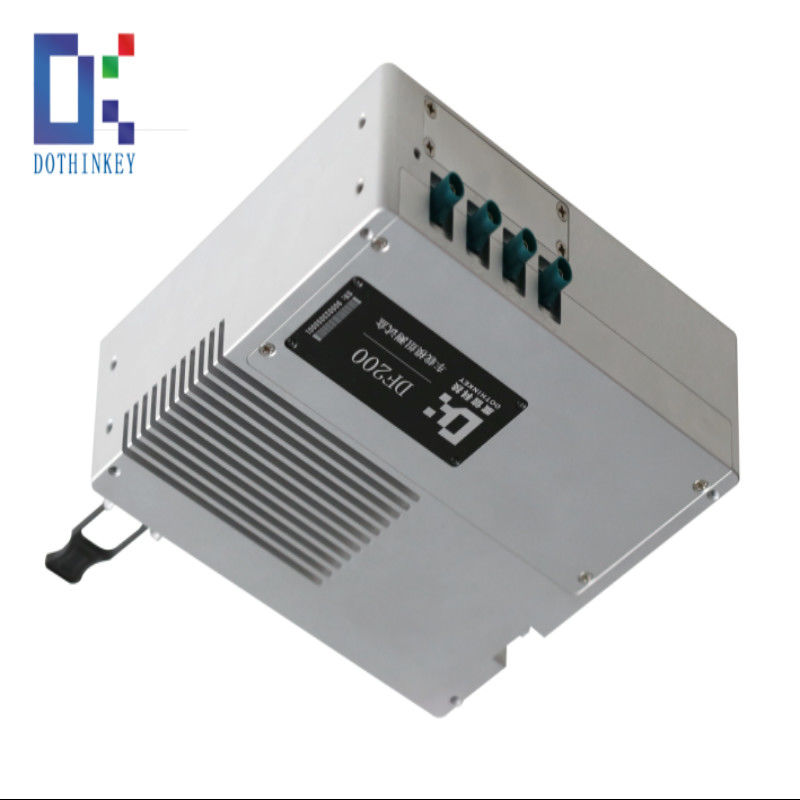

Automotive Calibration Aging Frame DF200 Image Grabber for EMC Testing ESD

Key Features

1. Power Supply & Voltage Range

   • Supports 0.8–18V module power supply configuration for broad compatibility.

2. Real-Time Monitoring & Diagnostics

   • Current monitoring for power management.

   • Frame rate/error frame display for performance tracking.

   • Link error statistics and decoding error statistics for troubleshooting.

3. Image Capture & Power over Coax (POC)

   • Capture and save full-channel images for analysis.

   • Powered via POC (Power over Coax) for simplified cabling.

4. Flexible Deserialization Solutions

   • Compatible with MAXIM/TI and most market-available serialized automotive modules.

   • Configurable decoupling to match specific module requirements.

5. High-Speed Fiber Optic Communication

   • 40Gbps fiber support (using 1–4 cables).

   • Backward-compatible with 10G network cards; bandwidth scales with connected 10G ports.

6. Automotive-Grade EMC Testing Support

   • Validates modules against automotive EMC standards (requires the module itself to meet specifications).
