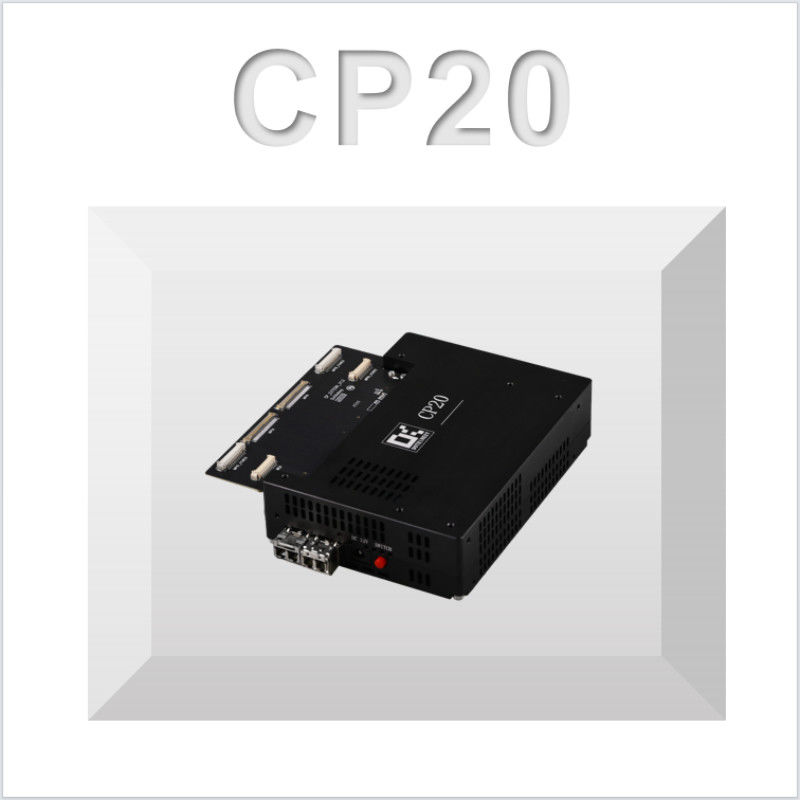

Dothinkey Automotive Frame Grabber With CSI/C PHY Optical Interface Camera Grabber

Dothinkey Automotive Frame Grabber with CSI/C PHY Optical Interface

Featutes:

1. Dual-Channel MIPI D-PHY/C-PHY Image Acquisition: Supports high-speed image data capture via two independent MIPI D-PHY/C-PHY interfaces.
2. Dual 5-Channel Programmable Sensor Power Supply: Provides 2×5 independently adjustable power rails for sensor voltage customization (e.g., 2.2V or other configurable outputs).
3. Multi-Range Current Measurement: Precision detection across mA, µA, and nA ranges for comprehensive power monitoring.
4. Dual 33-Channel Open/Short (OS) Circuit Testing: Enables fault detection across 2×33 signal lines for robust connectivity validation.
5. Product ID Configuration: Programmable device identification support for system-level tracking and management.
6. Analog Measurement Input Interface: Compatible with external analog signals (voltage/current) for auxiliary diagnostics.
7. Sensor Power Rail Voltage Monitoring: Real-time measurement of sensor supply voltages to ensure operational integrity.
8. Remote Kelvin Compensation for Sensor Power: Precision voltage regulation with remote sensing to eliminate line resistance errors.

Dimention:

DPS Maximum Load Capacity:
