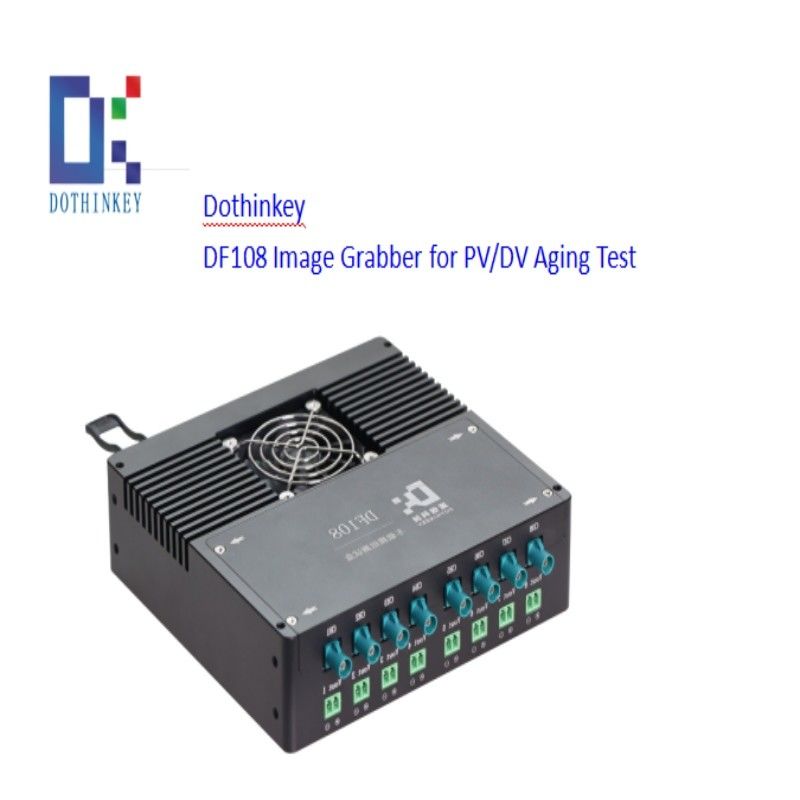

Name: Dothinkey Frame Image Grabber Image Test Box For Automotive Camera Testing
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: DF108
Price: 3,100.00 USD
Availability: InStock

Home > products > Automotive Frame Grabber >

Dothinkey Frame Image Grabber Image Test Box For Automotive Camera Testing

Dothinkey Frame Image Grabber

Automotive Camera Image Test Box

Automotive Camera Testing Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

DF108

Document:

DF108 Series Products Speci....3.pdf

Request A Quote

Dothinkey Frame Image Grabber Image Test Box For Automotive Camera Testing

Product Details

Input Voltage:

100V/AC~240V/AC

Output Power:

24V/DC

Output Current:

Power Supply:

DC 24V/5A

Work Temperature:

10℃ ~ 35℃

Storage Temperature:

-20℃ ~ 70℃

Module Type:

MAXIM/TI Serializer Module

PC Communication Interface:

40G Optical Fiber Interface X1

External Interface ESD Protection:

Human Body Model (HBM) ≥ ±4000V (except Interface)

Highlight:

Dothinkey Frame Image Grabber

Automotive Camera Image Test Box

Automotive Camera Testing Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Cardboard Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey DF108 Image Grabber Image Test Box For Automotive Camera Testing

Dimension:

Dothinkey Frame Image Grabber Image Test Box For Automotive Camera Testing 0

Interfaces:

Dothinkey Frame Image Grabber Image Test Box For Automotive Camera Testing 1

Interface Function Description:

	Specification	Description
1	Camera module interface (CH1-CH8)	8-channel module interface. For MAXIM/TI serial module, standard FAKRA coaxial interface (socket) as standard
2	Power output interface(Vout1-Vout8)	8-channel flash power supply interface, only for output, prohibited from connecting to any external power source
3	Fiber optic interface	40G fiber optic communication interface
4	Dial switch	Device ID setting dip switch
5	Signal indicator light	Red green dual color dual position indicator light, red power indicator, green status indicator.
6	External POC power input	Provide external standard test power input
7	External expansion interface	Reserve IO and power interfaces for external expansion
8	Image grabber power supply interface	Image grabber dedicated DC 24V power supply interface, used to supply power to the test box
9	Switch	Image grabber power switch
