Name: Automotive Camera Module Frame Grabber Dothinkey DF200 4 Channel
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: DF200
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Frame Grabber >

Automotive Camera Module Frame Grabber Dothinkey DF200 4 Channel

Automotive Camera Module Frame Grabber

Camera Module Frame Grabber Dothinkey

Dothinkey DF200

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

DF200

Request A Quote

Product Details

Power Supply:

DC 24V/5A

External Interface ESD Protection:

HBM ≥ ±8000V (excluding Interface Part)

Output Current:

Input Voltage:

100V/AC ~ 240V/AC

Module Interface:

Standard FAKRA Coaxial Interface

Working Temperature:

10℃ ~ 35℃

Output Voltage:

24V/DC

Color:

Gray

Highlight:

Automotive Camera Module Frame Grabber

Camera Module Frame Grabber Dothinkey

Dothinkey DF200

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

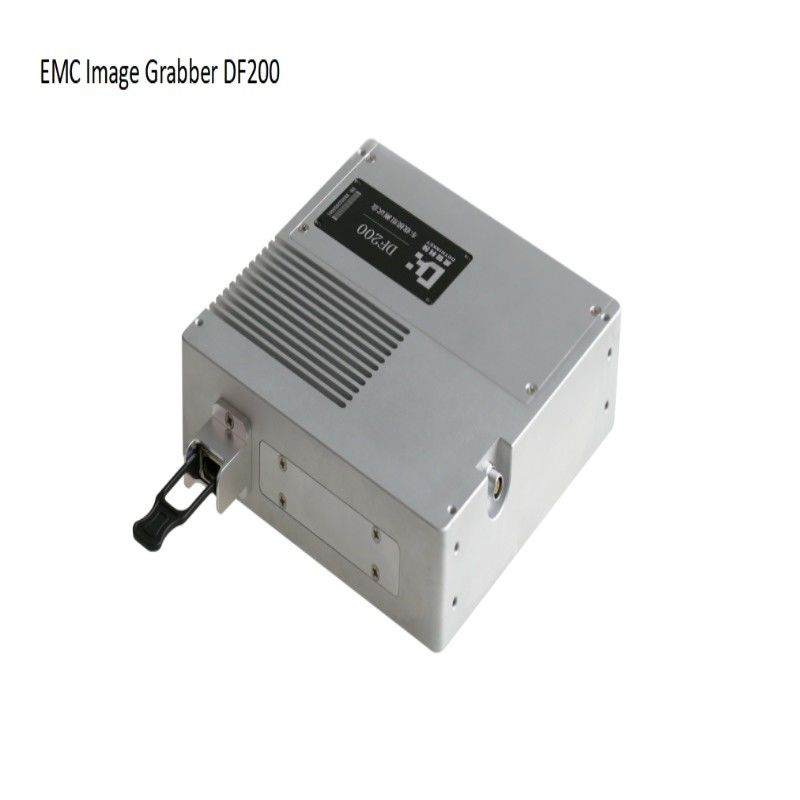

Dothinkey DF200 Automotive Camera Module Frame Image Grabber

Interface:

Automotive Camera Module Frame Grabber Dothinkey DF200 4 Channel 0

Interface description:

No.	Specification	Description
1	Camera Module Interface (CH1~CH4)	4-channel module interface. For MAXIM serializer modules, standard FAKRA coaxial connectors (receptacles) are provided as default.
2	Test Box Power Supply Interface	Dedicated DC 24V power input for the test box.
3	Fiber Optic Interface	40G fiber optic communication interface.

MAX96712 Deserializer Board Channel:

Image Grabber Channel	Deserializer Chip Input Channel	Deserializer Chip Pin Number	Type
CH1	Chip 1-S10C	Pin 11	FAKRA coaxial interface
CH2	Chip 1-S10A	Pin 26	FAKRA coaxial interface
CH3	Chip 2-S10C	Pin 11	FAKRA coaxial interface
CH4	Chip 2-S10A	Pin 26	FAKRA coaxial interface
