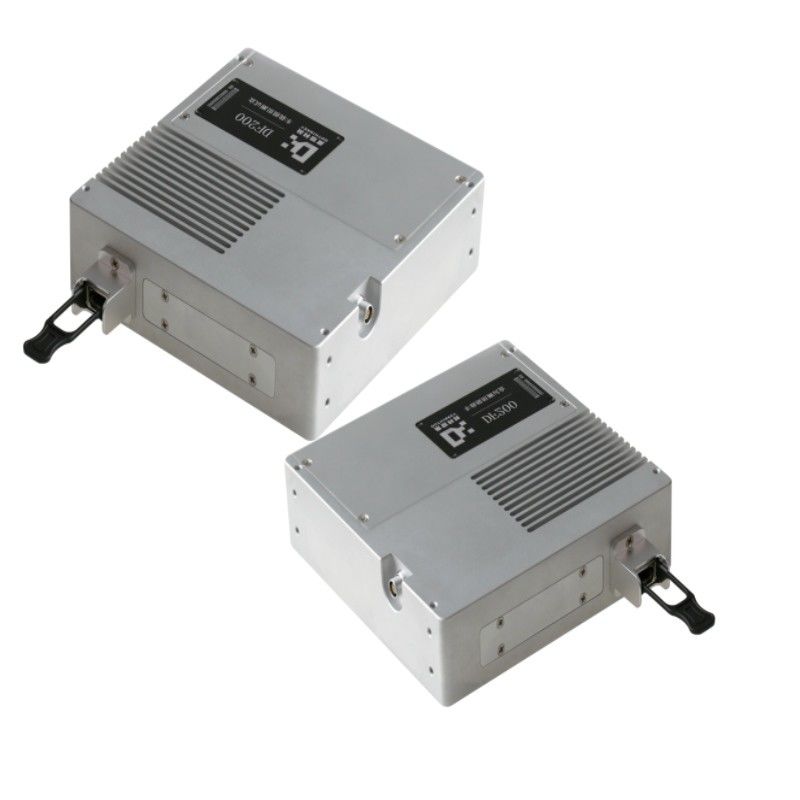

Name: Automotive Frame Image Grabber DF200 Fiber Optic Image Test Box
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: DF200
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Frame Grabber >

Automotive Frame Image Grabber DF200 Fiber Optic Image Test Box

Automotive Frame Image Grabber

Fiber Optic Image Test Box

Image Grabber Dothinkey

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

DF200

Request A Quote

Product Details

Color:

Gray

Input Voltage:

100V/AC ~ 240V/AC; 50Hz/60Hz

Output Voltage:

24V/DC

Output Current:

Power Supply:

DC 24V/5A

External Interface ESD Protection:

Uman Body Model (HBM) ≥ ±8000V (excluding Interface Part)

Working Temperature:

10℃ ~ 35℃

Module Interface:

Standard FAKRA Coaxial Interface

Highlight:

Automotive Frame Image Grabber

Fiber Optic Image Test Box

Image Grabber Dothinkey

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Automotive Frame Image Grabber DF200 Fiber Optic Image Test Box

Image grabber for automotive grade EMC-DF200.
Support Maxim lll, TlIV serializer scheme.
4 channels flexible selection.

1. Featutes:

1) 0.8-18V module power supply setting.
2) Current monitoring, frame rate/error frame display, Link error statistics, Decoding error statistics.
3) Capture and save the entire image of each channel, powered by POC.
4) Flexibly seletc decoupling solutions as needed (for MAXIM/TI serialized car modules, compatible with the vast majority of serialization scheme modules currently available on the market).
5) Support 40G fiber optic communication.
6) Capable of supporting automotive module EMC testing at the automotive specification level.

2. Introduction to EMC testing: DF200

EMC test result for automotive camera project
BCI	Pass Level 2
ESD	Direct discharge: Contact discharge: +15KV; Air discharge: 士25KV Indirect discharge: Coupling plate discharge: +25KV
Transient coupling anti-interference	Fast pulse: +100V/us, -150V/us
RE	Pass Class 5 level Test frequency channel: 300MHz-2.5GHz
CE	Pass Class 5 level Test frequency channel: 150KHz-245Hz
RI	Pass Level 2 Test frequency channel: 200MHz-4GHz Modulation types: CW, PM1and PM2
Handheld transmitter anti-interference	Pass Level 2 Test frequency channel: 380MHz-5.85GHz
