Dothinkey MIPI D-PHY

Dothinkey MIPI D-PHY

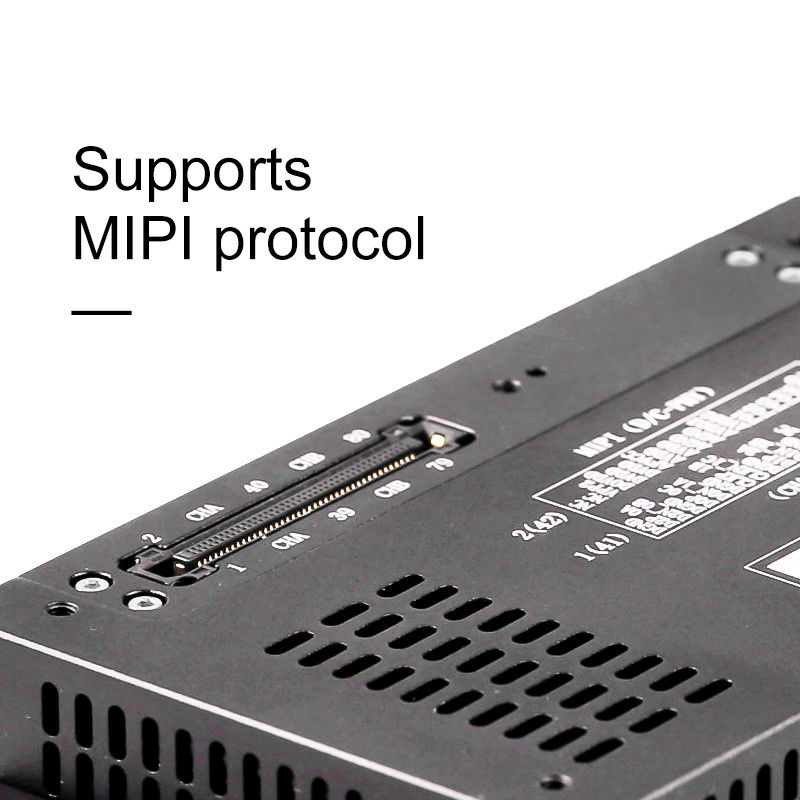

This F22MAX test box supports MIPI D-PHY 3.5Gbps/Lane.

What are the advantages of MIPI D-PHY?

MIPI D-PHY is a widely used physical layer interface in mobile devices with the following advantages:

1. High-speed data transmission
It supports multiple speed classes up to 2.5 Gbps per channel and beyond. It can meet the needs of large data transmission, such as HD video streaming, high resolution images, etc. For example, in the camera and display interface of smartphones, it can achieve fast data interaction and ensure smooth display and transmission of images and videos.

2. Low power consumption
Adopting high-speed and low-voltage differential signaling technology, it supports two modes: high-speed mode and low-power mode. When the device is in standby or light load state, it can be switched to low-power mode, significantly reducing power consumption and thus extending the battery life of mobile devices, especially suitable for power-sensitive mobile devices and IoT devices, etc.

3. Flexible
With support for multi-channel parallel operation, it can transmit data synchronously and achieve higher total bandwidth to meet the data rate requirements of different application scenarios. In addition, channel configuration is flexible, and high-speed data and control information can be transmitted independently on different channels to improve transmission efficiency. In addition, it supports a variety of MIPI protocols, such as CSI-2, DSI, etc., which can be used with different types of chips and sensors to meet a variety of application requirements.

4. Differential signal transmission
Data transmission with a pair of differential signal lines has a strong anti-interference capability, which can effectively reduce electromagnetic interference, improve signal stability and integrity, and ensure data accuracy during high-speed transmission, especially in complex electromagnetic environments, while still maintaining reliable data transmission. Convenient
