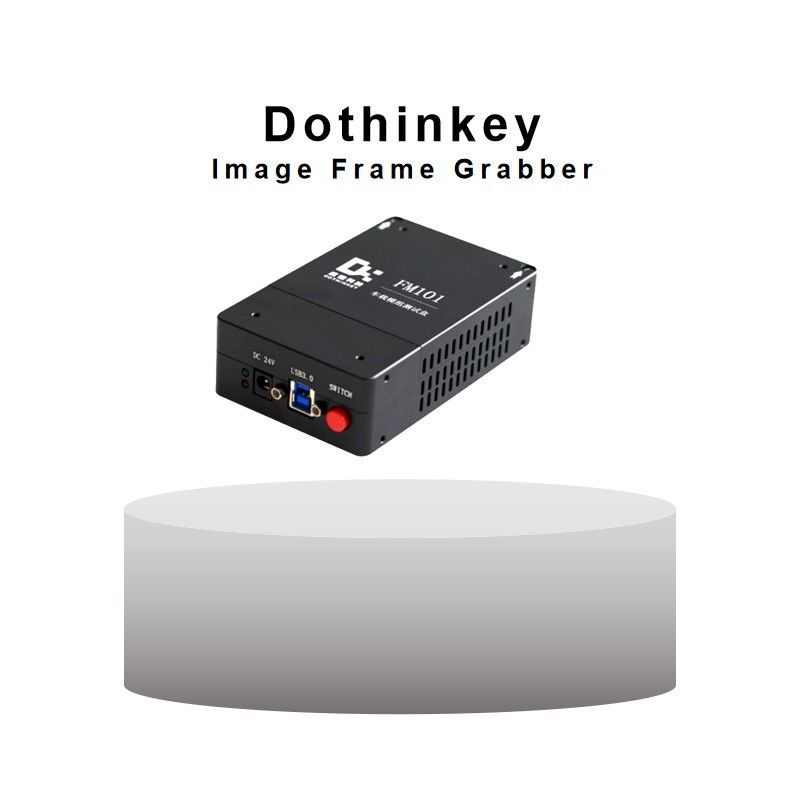

Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber

Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber

Calibration Aging Automotive Frame Grabber

Dothinkey Single Camera Grabber

Automotive Frame Grabber Dothinkey

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

CE

Model Number:

FM101

Contact Us
Request A Quote
Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber
Product Details
Brand:
Dothinkey
Color:
Black
Model:
FM101
Input Voltage:
10V/AC ~ 220V/AC 50Hz/60Hz
Output Power:
DC 24V/2.5A
Power Supply:
DC 24V/2.5A
Highlight:

Calibration Aging Automotive Frame Grabber

,

Dothinkey Single Camera Grabber

,

Automotive Frame Grabber Dothinkey

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD1200-USD5000
Packaging Details
Carton packaging
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
Stock availability
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

Dothinkey FM101 Image Grabber Automotive Calibration Aging



1.Product Overview
This single-camera test solution supports automotive module testing via FAKRA coaxial (single-ended) or STP differential interfaces.

2.Key Features

Wide power range: 0.8V-18V module power supply

Real-time monitoring

  1. Current consumption

  2. Frame rate

  3. Frame rate

  4. Full image capture & storage

  5. Supports POC power supply with voltage measurement

  6. Dedicated LED power supply for vehicle modules

  7. Flexible decoupling options (compatible with MAXIM/TI and most market solutions)



3.Schematic diagram of the connection between the MAXIM/TI serializer solution vehicle-mounted module and FM101

Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber 0

4.Interface distribution diagram

Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber 1

5.Product size drawing

Calibration Aging Automotive Frame Grabber Dothinkey Single Camera Grabber 2
