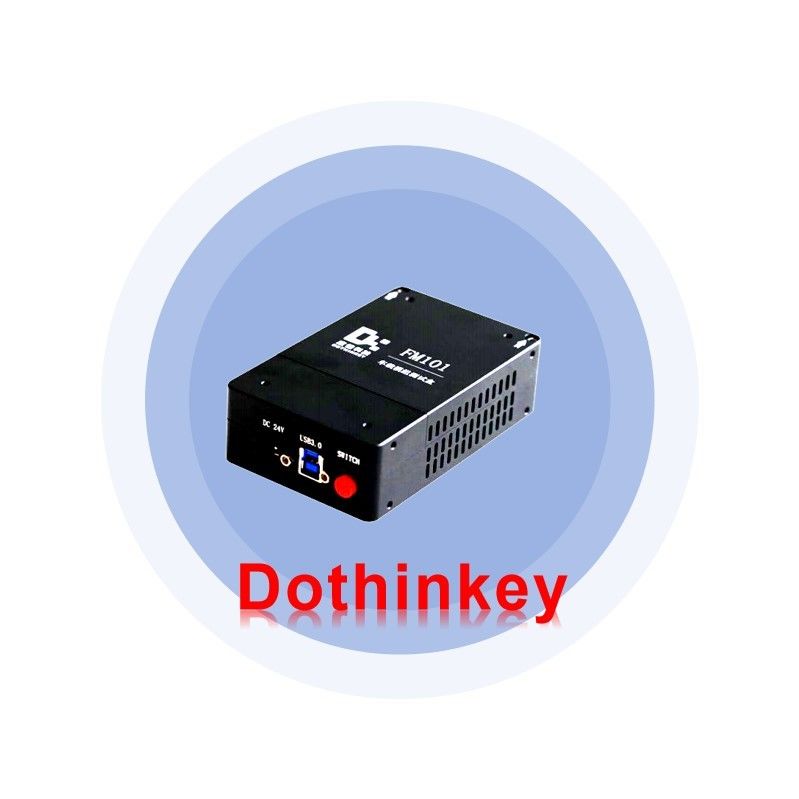

Name: 5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: FM101
Price: 3,100.00 USD
Availability: InStock

Home > products > Automotive Frame Grabber >

5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test

5Gbps Automotive Frame Grabber

Automotive Internal Parameter Calibration Frame Grabber

AA Test Image Frame Grabber

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

FM101

Request A Quote

5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test

Product Details

Brand:

Dothinkey

Max MIPI Channels:

1.6Gbps/Lane

Image Transmission Rate:

5Gbps

Size:

120*75*35mm

Highlight:

5Gbps Automotive Frame Grabber

Automotive Internal Parameter Calibration Frame Grabber

AA Test Image Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availability

Related Products

86-755-6114-6178

Contact Now

Product Description

5Gbps Image Transmmission Rate Appllication For Automotive Mounted Internal Parameter Calibration/AA Test

1.Schematic diagram of the connection between the MAXIM/TI serializer solution vehicle-mounted module and FM101

2.Interface distribution diagram

3.Interface Function Description

1	Power output interface	No external power supply equipment is allowed! It is used to supply power to the supplementary lighting of the external module, independent of the POC power supply, and connected.The PIN spacing of the wire terminal is 3.81mm
2	Camera module interface A	Default standard configuration: Coaxial interface (COAX), FAKRA connector, Z-shaped foolproof interface, aqua blue
3	Camera module interface B	Differential Interface (STP), the finished product is only reserved. Recommended model: D4S20G-400A5-Z, water blue (Z) Type foolproof interface
4	Indicator light	Red: Power indicator light Green: Signal indicator light
5	Test box power supply interface	A dedicated DC 24V/2.5A power supply interface for the test box, which is used to provide working power for the test box
6	USB3.0 interface	USB3.0 communication interface
7	Switch	Test box power on/off switch
