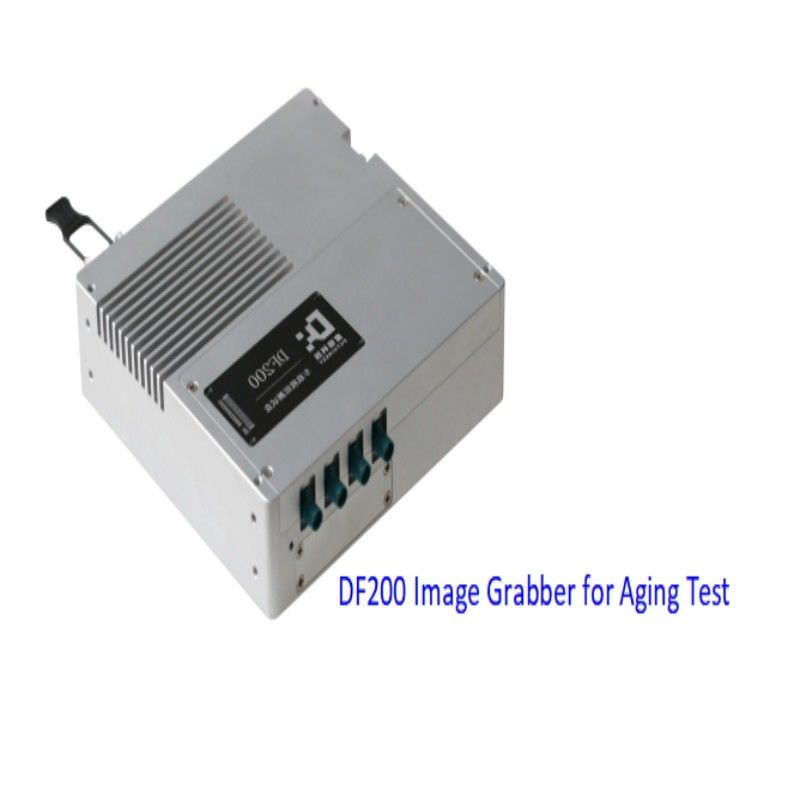

Name: FAKRA Coaxial Interface Automotive Image Grabber Dothinkey Image Test Box DF200
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: DF200
Price: 3,100.00 USD
Availability: InStock

Home > products > Automotive Frame Grabber >

FAKRA Coaxial Interface Automotive Image Grabber Dothinkey Image Test Box DF200

Automotive Image Grabber Dothinkey

Dothinkey Image Test Box

FAKRA Coaxial Automotive Image Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

DF200

Request A Quote

Product Details

External Interface ESD Protection:

Human Body Model ≥ ±8000V (excluding Interface Part)

Module Interface:

Standard FAKRA Coaxial Interface

Power Supply:

DC 24V/5A

Input Voltage:

50Hz/60Hz; 100V/AC ~ 240V/AC

Output Voltage:

24V/DC

Color:

Gray

Output Current:

Working Temperature:

10℃ ~ 35℃

Highlight:

Automotive Image Grabber Dothinkey

Dothinkey Image Test Box

FAKRA Coaxial Automotive Image Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Camera Module Under Test Characteristics

Parameter	Specification
Module Interface	Standard FAKRA coaxial interface
Module Type	MAXIM/TI serializer-based modules
Maximum Number of Channels	4 channels (supports simultaneous testing of up to 12M modules)
Power Supply Method	PoC (Power over Coax)

DPS (Digital Power Supply) Characteristics

Feature	Description
4 Adjustable Power Channels	Provides 4 independent power channels, adjustable from 0.8-18V (detailed parameters in subsequent tables)

PC Interface Communication

Interface	Specification
PC Communication Interface	40G fiber optic interface x1

Supported Functions

Single image grabber can simultaneously support aging tests for up to 4 channels of the same type of automotive camera modules
Real-time frame rate display, error frame display, Link error statistics, and Decoding error statistics
Full-image capture and saving for each channel
Supports various serializer-based modules available in the market with configurable decoding solutions and flexible test channel selection
