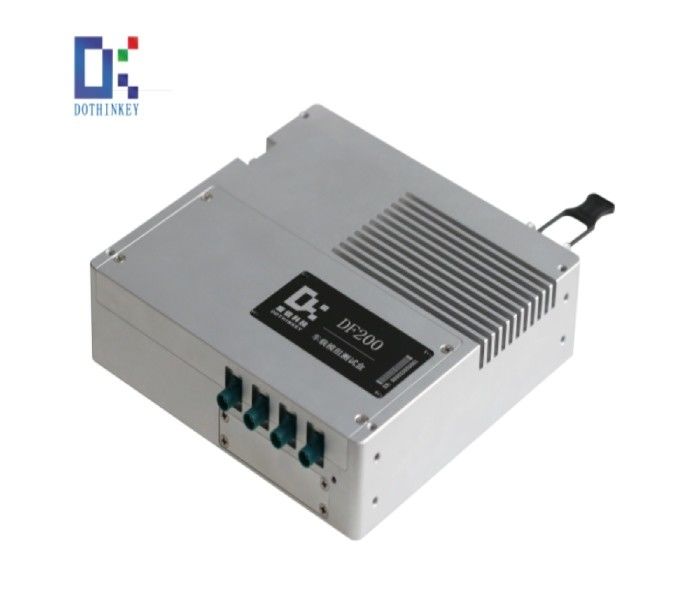

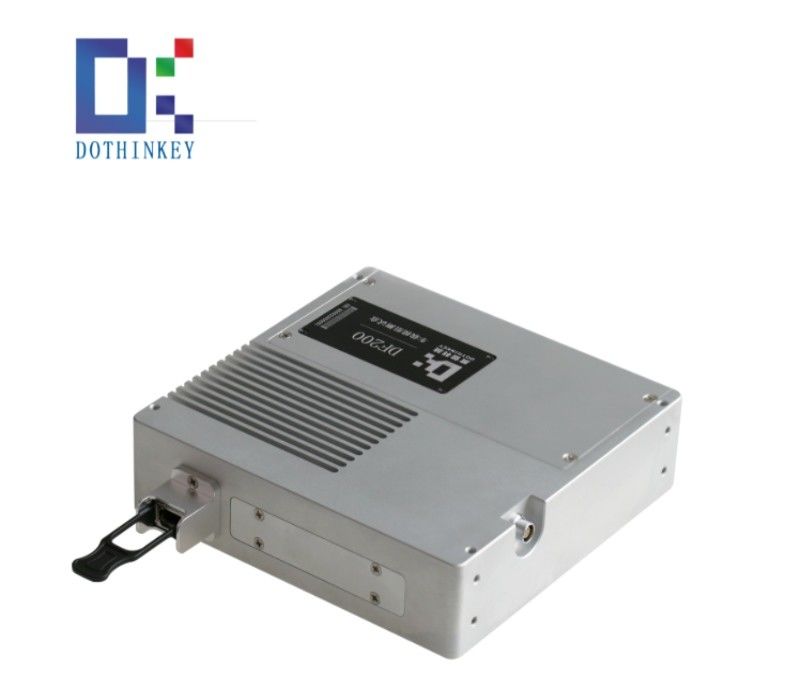

Name: High Speed DF200 Dothinkey Image Frame Grabber For Automotive Camera Testing
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: DF200
Price: 3,100.00 USD
Availability: InStock

Home > products > Image Frame Grabber >

High Speed DF200 Dothinkey Image Frame Grabber For Automotive Camera Testing

High Speed DF200 Dothinkey

Dothinkey Image Frame Grabber

Automotive Camera Testing Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

DF200

Request A Quote

Product Details

Color:

Gray

Input Voltage:

100V/AC ~ 240V/AC; 50Hz/60Hz

Output Voltage:

24V/DC

Output Current:

Power Supply:

DC 24V/5A

External Interface ESD Protection:

Uman Body Model (HBM) ≥ ±8000V (excluding Interface Part)

Working Temperature:

10℃ ~ 35℃

Module Interface:

Standard FAKRA Coaxial Interface

Highlight:

High Speed DF200 Dothinkey

Dothinkey Image Frame Grabber

Automotive Camera Testing Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

High Speed DF200 Fiber Optic Image Frame Grabber for Automotive Camera Testing

Interface	Coaxial
Transmission	Fiber optic
Channel	4

1. Featutes:

1) 0.8-18V module power supply setting.
2) Current monitoring, frame rate/error frame display, Link error statistics, Decoding error statistics.
3) Capture and save the entire image of each channel, powered by POC.
4) Flexibly seletc decoupling solutions as needed (for MAXIM/TI serialized car modules, compatible with the vast majority of serialization scheme modules currently available on the market).
5) Support 40G fiber optic communication (using one to four fiber optic cables, compatible with 10G cards, and bandwidth determined by the number of 10G ports connected).
6) Capable of supporting automotive module EMC testing at the automotive specification level (provided that the automotive module itself can pass the automotive specification level EMC).

2. Introduction to EMC testing: DF200

EMC test result for automotive camera project
BCI	Pass Level 2
ESD	Direct discharge: Contact discharge: +15KV; Air discharge: 士25KV Indirect discharge: Coupling plate discharge: +25KV
Transient coupling anti-interference	Fast pulse: +100V/us, -150V/us
RE	Pass Class 5 level Test frequency channel: 300MHz-2.5GHz
CE	Pass Class 5 level Test frequency channel: 150KHz-245Hz
RI	Pass Level 2 Test frequency channel: 200MHz-4GHz Modulation types: CW, PM1and PM2
Handheld transmitter anti-interference	Pass Level 2 Test frequency channel: 380MHz-5.85GHz

3. Diagram

MAXIM serializer automotive camera module and DF200

High Speed DF200 Dothinkey Image Frame Grabber For Automotive Camera Testing 0
