Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions

Automotive Image Frame Grabber

Image Frame Grabber MIPI CSI

CSI Optical Frame Grabber Device

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions

Product Details

Sensor IO:

1.2 -3.3V

Buffer Capacity:

DDR4_16Gbit

MIPI Data Channel:

MIPIC-PHY 1/2/3 Trio

VAUX:

Measuring Range:1.3~8.0V, Accuracy: +_50mV

Output Voltage:

24V/DC

Height Width Length:

35mm 100mm 140mm

Power Supply:

DC12V/3A

ESD Protection:

Machine Model(MM)>+_200V

Highlight:

Automotive Image Frame Grabber

Image Frame Grabber MIPI CSI

CSI Optical Frame Grabber Device

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

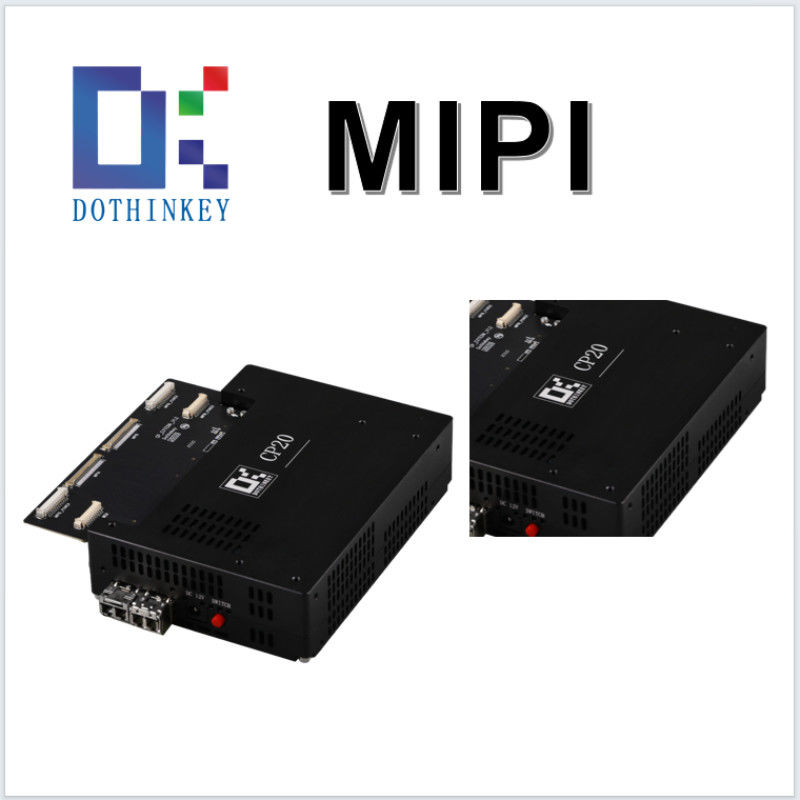

Automotive Image Frame Grabber MIPI CSI Optical Interface for DSP Solutions

Featutes:

1. Dual MIPI D/C-PHY Interface
High-speed image acquisition via dual-channel MIPI D-PHY/C-PHY protocols.
2. 2×5 Programmable Power Rails
10 independent voltage channels (2.2V configurable) for multi-sensor compatibility.
3. Multi-Range Current Detection
Precision measurement from mA to nA with <1% error margin.
4. 66-Channel OS Test
Open/short fault detection across 66 signal paths.
5. Programmable Product ID
Unique device identification for automated system integration.
6. Analog Signal Interface
External voltage/current input for auxiliary diagnostics.
7. Sensor Voltage Monitoring
Real-time rail measurement (±0.5% accuracy).
8. 4-Wire Kelvin Compensation
Remote voltage sensing to negate line resistance effects.

Schematic:

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions 0

Dimention:

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions 1

CP20 Product Specifications:

Pin Number	Pin Name	Pin Type	Function
A14	A_AGND	Power	Image Sensor Analog GND
A15	A_AVDD2	Power	Image Sensor Analog GND
A16	A_AVDD2	Power	Image sensor analog power supply
A17	A_AVDD2	Power	Image sensor analog power supply
A18	A_AVDD2_FB	Input	Image sensor analog power supply remote kelvin compensation feedback pin
A19	A_DGND	Power	Image Sensor Analog GND
A20	A_ADC1	Input	Image sensor reference voltage measurement pin
A21	A_ADC2	Input	Image sensor reference voltage measurement pin
A22	A_ADC3	Input	Image sensor reference voltage measurement pin
A23	A_ADC4	Input	Image sensor reference voltage measurement pin
A24	A_DGND	Power	Image Sensor Analog GND
A25	A_POl	I/O	Image sensor digital GND
A26	B_DOVDD	Power	Image sensor 10 Power supply.
