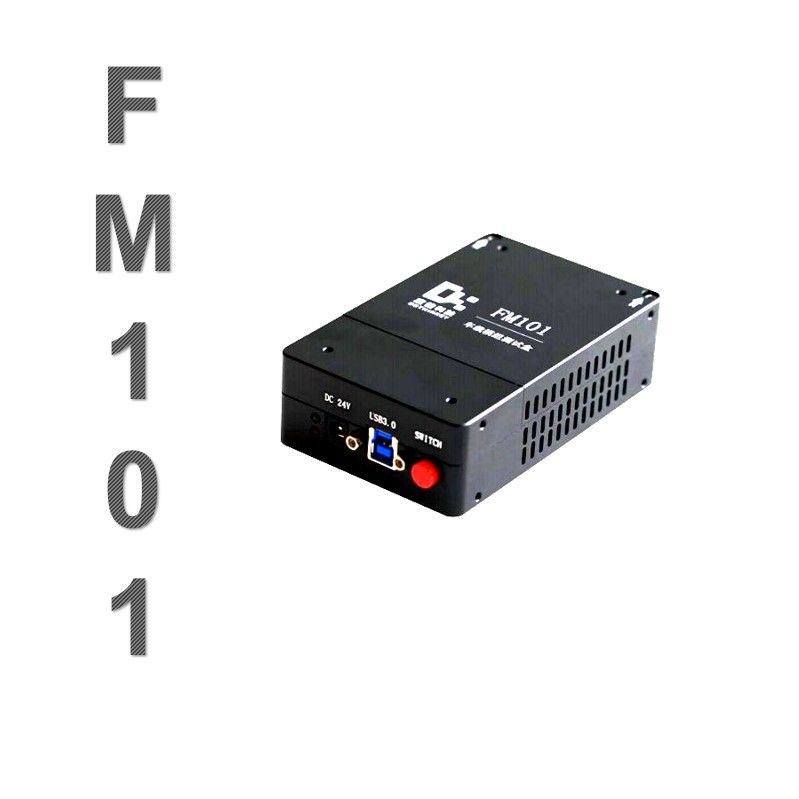

FM101 Automotive Camera Frame Grabber Advanced Power Image Capture

FM101 Automotive Image Frame Grabber, Advanced Power, Image Capture

1.FM101 Supported functions

The FM101 test system provides a complete single-camera testing solution for automotive modules, supporting both FAKRA coaxial (single-ended) and STP differential interfaces. It features real-time current monitoring with comprehensive diagnostic capabilities including frame rate measurement, error frame detection, and detailed error statistics (Link/Decoding). The system enables full-image capture/storage while supporting Power-over-Coax (POC) functionality - including power delivery and voltage monitoring - plus dedicated LED power supply for vehicle modules. Offering flexible configuration, it provides selectable decoupling solutions and maintains compatibility with leading automotive serialization standards (MAXIM/TI) as well as most market-available serialized modules. This all-in-one solution ensures reliable validation of in-vehicle camera modules.

2.The FM101 product offers 4 programmable device ids. When applied in automation, to facilitate the identification of the test boxes corresponding to each workstation, the toggle switch on the test box can be turned to set the required device ID number for the test box. The following figure shows the position of the toggle switch

3.Interface distribution diagram
