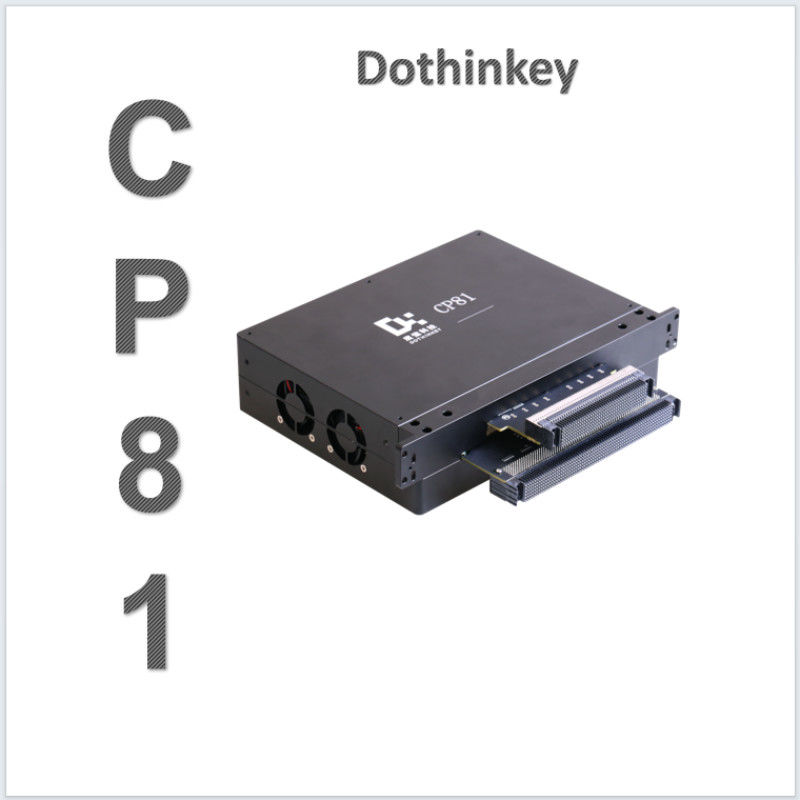

Name: Nano Scale MIPI Frame Grabber Camera Link Frame Grabber USB 3.0
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > Image Frame Grabber >

Nano Scale MIPI Frame Grabber Camera Link Frame Grabber USB 3.0

Nano Scale MIPI Frame Grabber

USB 3.0 MIPI Frame Grabber

Camera Link Frame Grabber USB 3.0

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Nano Scale MIPI Frame Grabber Camera Link Frame Grabber USB 3.0

Product Details

DPS Output Voltage Range:

10uA~20nA;100nA~200uA;1~100nA

Buffer Capacity:

DDR4_86bit * 4

External Interface ESD Protection:

Machine Model >= ±100W

DPS Characteristics:

DVDD 0.5-3.5V Adjustable, Maximum Drive Capability 0.8A

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane

Height Width Length:

59mm * 262mm * 230mm

Highlight:

Nano Scale MIPI Frame Grabber

USB 3.0 MIPI Frame Grabber

Camera Link Frame Grabber USB 3.0

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Nano-Scale Detection Accuracy MIPI Image Frame Grabber USB 3.0

Featutes:

1. 8-lane MIPI CSI-2 compliant image data capture
2. Scalable power management unit (8 modules × 6 programmable rails)
3. Ultra-wide dynamic range current monitoring
4. High-throughput optical sensor test interface (8×39 pattern)
5. Configurable analog measurement channel
6. Real-time PSU voltage measurement subsystem
7. LP mode differential voltage verification
8. Kelvin connection topology for precision power delivery

Schematic:

Nano Scale MIPI Frame Grabber Camera Link Frame Grabber USB 3.0 0

Dimention:

Nano Scale MIPI Frame Grabber Camera Link Frame Grabber USB 3.0 1

CP81 Analog Measurement Input Pin Application:

Pin Name	Measurement Voltage Range	Accuracy	Number of Test Channels
ADC1~ADC6	-2~5V	±10mV	8X6
