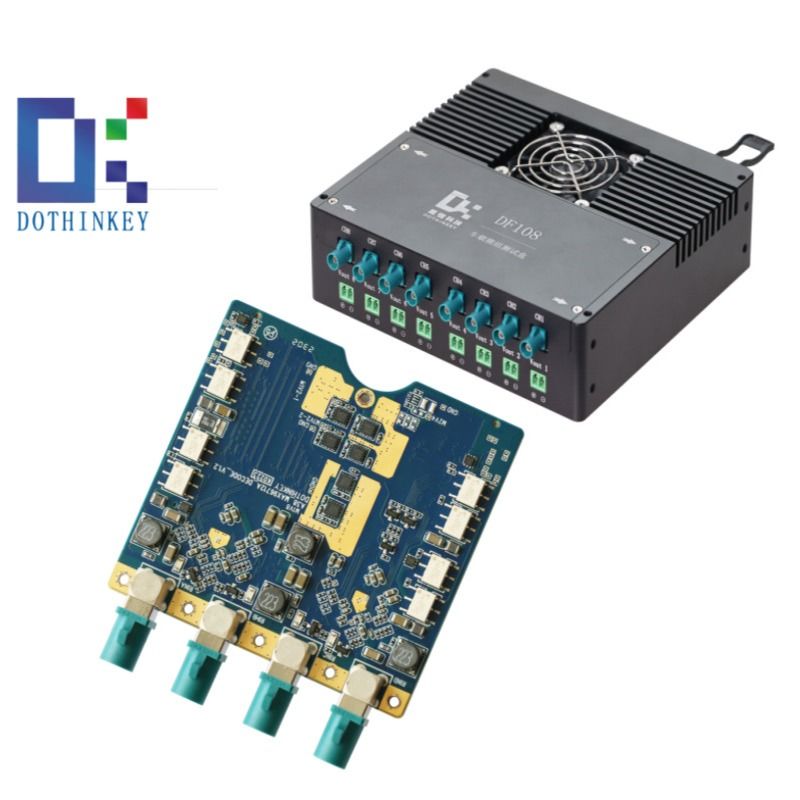

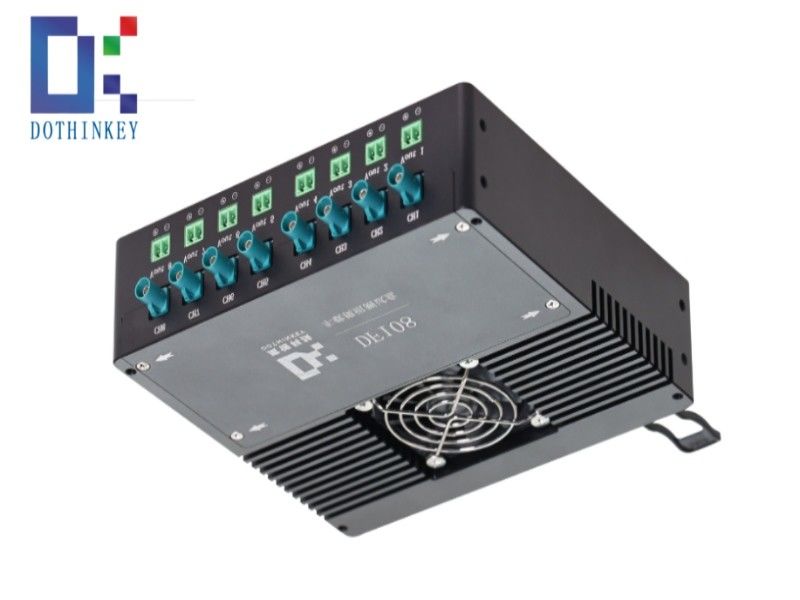

Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test

Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test

Dothinkey DF108

Dothinkey Image Frame Grabber

Dothinkey Multi Camera Test

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

CE

Model Number:

DF108

Contact Us
Request A Quote
Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test
Product Details
Input Voltage:
100V/AC~240V/AC
Output Power:
24V/DC
Output Current:
5A
Power Supply:
DC 24V/5A
Work Temperature:
10℃ ~ 35℃
Storage Temperature:
-20℃ ~ 70℃
Module Type:
MAXIM/TI Serializer Module
PC Communication Interface:
40G Optical Fiber Interface X1
Highlight:

Dothinkey DF108

,

Dothinkey Image Frame Grabber

,

Dothinkey Multi Camera Test

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Cardboard Packaging
Delivery Time
5-8 Working Days
Payment Terms
T/T
Supply Ability
Stock Available
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

DF108 Image Frame Grabber for Automotive Multi-Camera DV PV Aging Test



1. Functions:

1) Flexible selection of 1-8 channels.

2) 0.8V-18V power supply settings.

3) Current monitoring, frame rate/error frame display, Link error statistics, Decoding Error statistics.

4) Support full image capture and saving for each channel, POC power supply.

5) The deserializer can be selected on demand (for MAXIM serializer/TI serializer and other vehicle modules, it can be compatible with most serialization modules on the market at present).

6) Supports 40G fiber optic communication (using a one-to-four fiber optic cable, compatible with 10G cards, with bandwidth determined by the number of connected 10G ports).

7) Supports external POC power input (all 8 channels support external input, but only one can be used at a time).



2. Diagram: MAXIM/TI serializer and DF108



Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test 0



3. Dimention:

Dothinkey DF108 Image Frame Grabber For Automotive Multi Camera DV PV Aging Test 1
