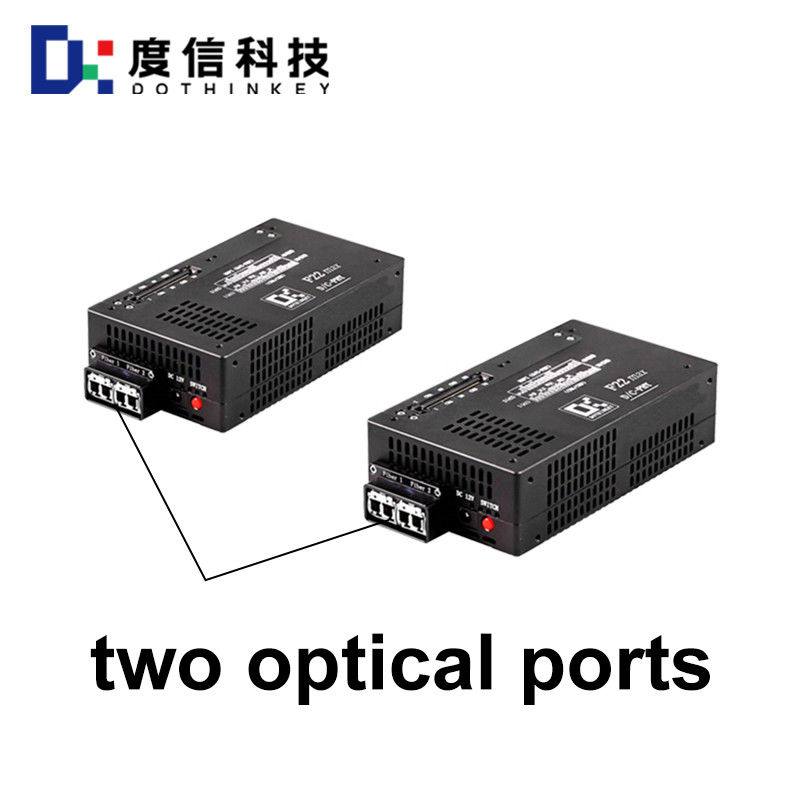

D-PHY MIPI Frame Grabber Dothinkey F22MAX Anti Interference

MIPI D-PHY Image Frame Grabber

What are the benefits of the MIPI D-PHY Image Frame Grabber?
High reliability and anti-interference
Differential Signal Transmission : MIPI adopts differential signaling for data transmission, using two completely symmetrical lines to transmit the positive and negative parts of the signal respectively, the receiving end only cares about the potential difference between the two lines, which is highly resistant to common-mode interference, and at the same time reduces the electromagnetic radiation, improves the integrity and reliability of the signal transmission, and ensures the accuracy and stability of the data in the process of high-speed transmission.

Advanced modulation technology and clock recovery mechanism: the use of these technologies further improves the accuracy and stability of data transmission, to ensure the integrity of the data in the high-speed transmission process.

Low Cost
Reduced wiring: The MIPI interface uses fewer pins and wiring, which reduces electromagnetic interference, reduces wiring costs and complexity, and also helps to reduce the size and weight of the device, which is advantageous for space- and cost-sensitive devices such as mobile devices.
Scale effect brought about by standardization: As one of the most mainstream video transmission interface specifications in the mobile field, the wide application of MIPI has promoted the development of the related industrial chain, formed a scale effect, and reduced the cost of chips, modules and other components, enabling device manufacturers to obtain high-performance interface solutions at a lower cost.
