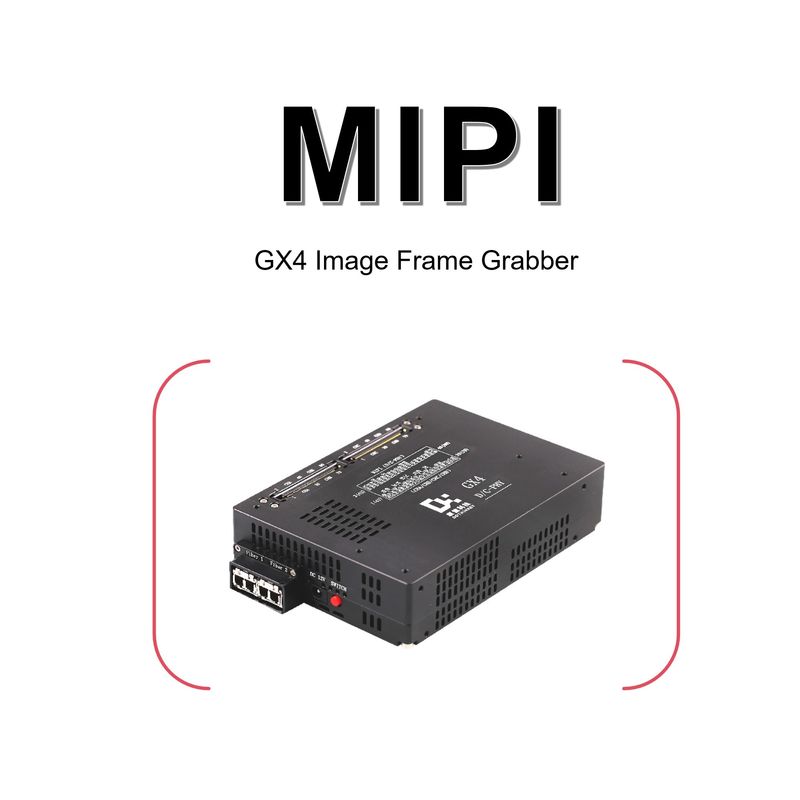

Mobile Phone Camera Module MIPI Frame Grabber Dothinkey GX4

Electrical Specifications

Power supply

DC12V/3A

External interface ESD protection

Human Body Model (HBM) ≥ ±4000V
Machine Model (MM) ≥ ±200V

Size

High

35mm ± 0.2mm

Width

100mm ± 0.2mm

Length

140mm ± 0.2mm

Sensor Compatible Features

Sensor Interface

MIPI D-PHY CSI ；MIPI C-PHY CSI

MIPI Maximum Rate

GX4/GX4E

CHA/CHB

MIPI D-PHY  1.9Gbps/Lane

MIPI C-PHY  1.9Gsps/Trio

CHC/CHD

MIPI D-PHY  1.9Gbps/Lane

MIPI C-PHY  1.5Gsps/Trio

MIPI Data Channel

4C,4D,3D+1C,3C+1D&2D+2C

MIPI D-PHY  1/2/4  Lane

MIPI C-PHY  1/2/3  Trio

DPS characteristics

Support 28 power supply adjustable

Provide 4X7 independent power supply, of which 4X4 road 0.8-3.3V adjustable, the maximum driving capacity of 1A; 4X2 road 0.8-5V adjustable, the maximum driving capacity of 1A, 4X1 road 0.8-8V adjustable, the maximum driving capacity of 3A.

OS Features

Support 4X29 way OS test

PC Interface & Buffer

PC communication interface

10G fiber optic interface* 2

Buffer Capacity

DDR4_16Gbit

Voltage measurement

LP Voltage Measurement

Measuring range:0~1.4V, accuracy:±10mV

Sensor GPIO Voltage Measurement

Measuring range:0~3.3V, accuracy:±20mV

LC Features

Supports 4X29 channel LC test

Sensor Communication Indicators

100K-1M

SPI Maximum Communication Frequency

20MHz

Sensor Clock

6 - 99MHz±0.01MHz

Sensor IO level (following DOVDD)

1.2 - 3.3V
