Dothinkey USB3.0 Series MIPI Capture Card DVP HISPI LVDS And SPI Frame Grabber

Dothinkey USB3.0 Series Image Grabber Supports Multiple Protocols-MIPI, DVP, HISPI, LVDS, And SPI

Overviwe

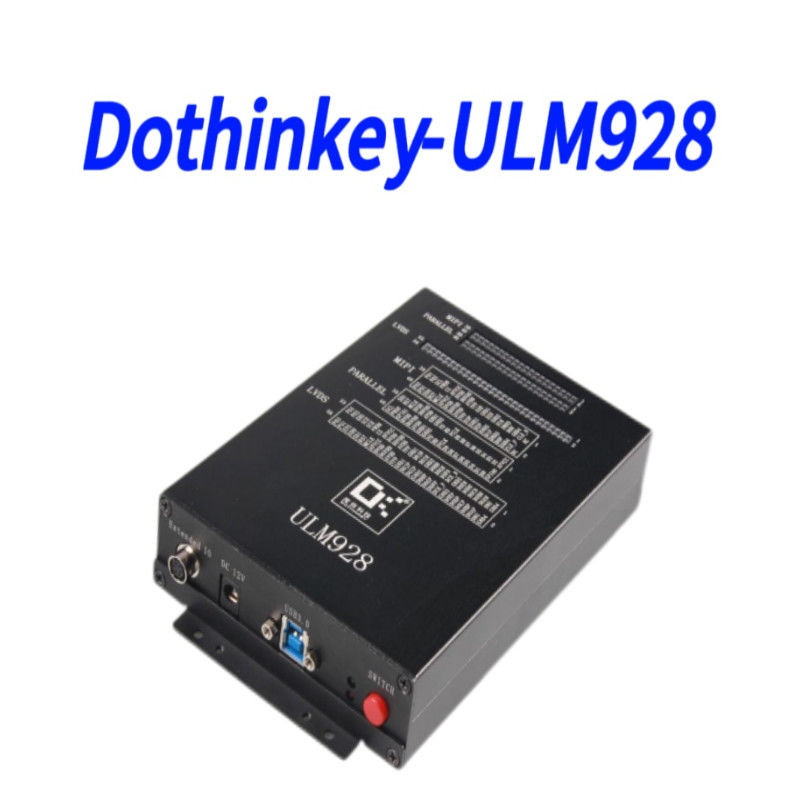

The image grabber ULM928 is a versatile testing solution designed for high-performance image capture and sensor evaluation. Featuring a USB 3.0 interface, it supports multiple protocols, including MIPI, DVP, HISPI, LVDS, and SPI, making it ideal for mobile, automotive, and surveillance camera testing.

Key Features

• High-Speed Data Transfer: USB 3.0 (5Gbps) ensures rapid image processing.

• Multi-Interface Compatibility: Supports MIPI (4-lane @1Gbps), LVDS (10-lane @600Mbps), and DVP (200MHz PCLK).

• Precision Power Management: Five programmable low-noise power channels (up to 3.3V/500mA) for sensor supply.

• Advanced Current Detection: High-resolution measurement (10nA) for standby and dynamic current analysis.

• Comprehensive Fault Detection: 45-channel Open/Short testing with adaptive thresholds for reliable diagnostics.

Advantages

a.Optimized for high-speed imaging with robust signal integrity.

b.Flexible power delivery (2.5V–9V) to accommodate diverse sensor requirements.

c.Enhanced testing accuracy with configurable voltage/current settings.

d.Broad device compatibility, ensuring efficient module validation.

Image and transmission technical Specifications

1)SENSOR compatibility

a.MCLK clock range-6MHz ~ 99MHz

b.MCLK clock accuracy-±0.1MHz

c.SENSOR IO level range (following DOVDD) -1.3V ~ 3.3V

d.LVDS bandwidth-≥600Mbps/Lane

e.Number of LVDS data channels-1/2/4/8/10Lane

f.MIPI bandwidth-≥1Gbps/Lane

g.Number of MIPI data channels-1/2/4Lane

h.PCLK clock frequency-200M HZ

i.Support image formats-RGB565/YUV422 RAW8/RAW10/RAW12

j.Support RGB format-RGB565

2)USB3.0 metric

a.USB3.0 data bandwidth-5Gbps

3)Technical indicators of SENSOR I2C

a.I2C communication rate-100K/400K/1M
