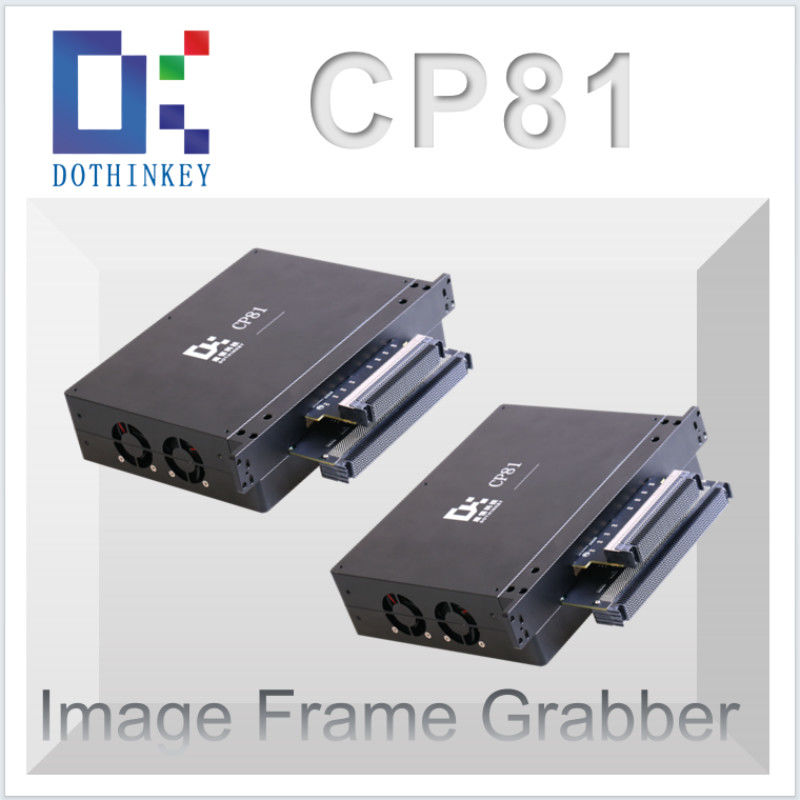

Name: Dothinkey USB Camera Frame Grabber 2.5Gbps Usb3 Frame Grabber
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > USB Frame Grabber >

Dothinkey USB Camera Frame Grabber 2.5Gbps Usb3 Frame Grabber

Dothinkey USB Camera Frame Grabber

2.5Gbps Usb3 Frame Grabber

Dothinkey Usb3 Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Dothinkey USB Camera Frame Grabber 2.5Gbps Usb3 Frame Grabber

Product Details

Analog Measurement Inputs:

-2 ~ 5V, Accuracy: ±10mV

DPS Characteristics:

AVID, AVID2, DOVID, VPP2 Maximum Drive Capability 0.5A

Height Width Length:

59mm * 262mm * 230mm

Sensor Measurement Voltage Rang:

0.5~5V

MIPI Maximum Rate:

2.5Gbps/Lane

Power Supply:

DC12V/8A

Highlight:

Dothinkey USB Camera Frame Grabber

2.5Gbps Usb3 Frame Grabber

Dothinkey Usb3 Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey 8×39 OS Testing Supported USB Frame Grabber with Industrial Protection

Featutes:

1. MIPI-compliant multi-camera interface (8 channels)
2. 48-zone power delivery network with dynamic adjustment
3. Precision electrometer-grade current detection
4. Matrix-driven optical sensor test environment
5. Multi-function analog measurement system
6. Supply voltage metrology with 0.1% accuracy
7. Low-power mode interface validation
8. Kelvin compensation for DC power path

Schematic:

Dothinkey USB Camera Frame Grabber 2.5Gbps Usb3 Frame Grabber 0

Dimention:

Dothinkey USB Camera Frame Grabber 2.5Gbps Usb3 Frame Grabber 1

CP81 OS (Open/Short) Application:

Test Voltage Setting Range	Test Voltage Resolution	Test Current Range	Test Current Resolution	Number of Test Channels	OS Test Resolution
0.5-2V	0.1V	0-10mA	0.1mA	2X39	0.1mV
