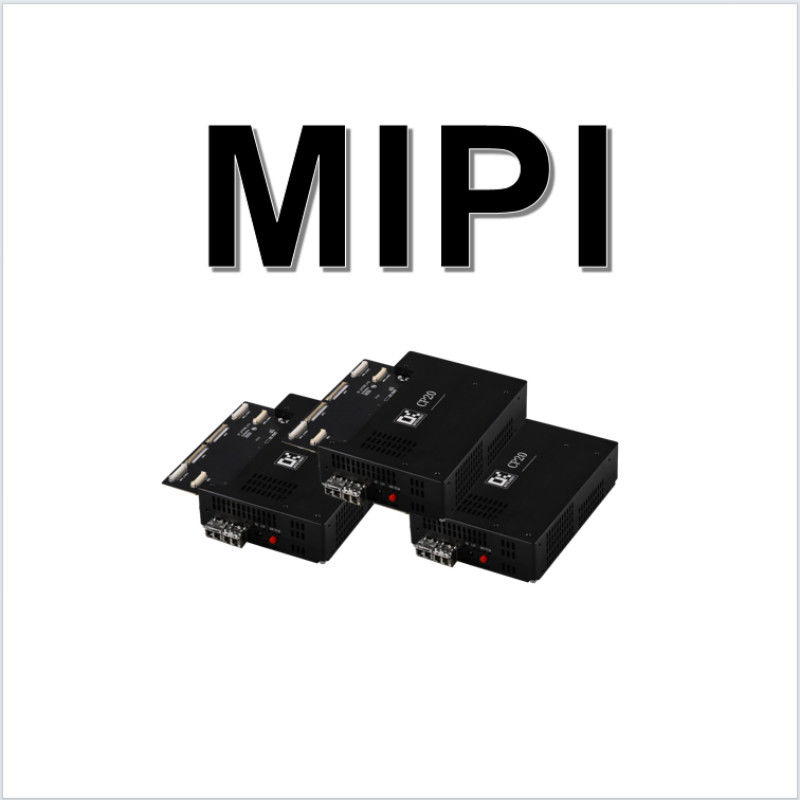

Name: Optical Interface USB Frame Grabber USB MIPI With Kelvin Compensation
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP20
Price: 3,100.00 USD
Availability: InStock

Home > products > USB Frame Grabber >

Optical Interface USB Frame Grabber USB MIPI With Kelvin Compensation

Optical Interface USB Frame Grabber

Kelvin Compensation USB MIPI

USB Frame Grabber USB

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

Optical Interface USB Frame Grabber USB MIPI With Kelvin Compensation

Product Details

SensorInterface:

MIPID-PHYCSI

VAUX:

Measuring Range:1.3~8.0V, Accuracy: +_50mV

KelvinCompensation:

AVDD,AVDD2,VPP2,DOVDD,DVDDsupportKelvin Compensation.

Buffer Capacity:

DDR4_16Gbit

Output Voltage:

24V/DC

PowerSupply:

DC12V/8A

OSFeatures:

Supports 2×33 OS Testing

IC Rate:

100K-1M

Highlight:

Optical Interface USB Frame Grabber

Kelvin Compensation USB MIPI

USB Frame Grabber USB

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

USB Frame Grabber CP20 with Kelvin Compensation and Optical Interface

Featutes:

1. Dual MIPI D/C-PHY Capture:High-speed imaging via two MIPI D/C-PHY interfaces.
2. 2×5 Configurable Sensor Power:Adjustable voltage rails (e.g., 2.2V) across 10 channels.
3. Multi-Range Current Sensing:Supports mA, µA, and nA measurements.
4. 2×33 OS Test Channels:Open/short circuit detection for 66 lines.
5. Programmable Product ID:Customizable device identification.
6. Analog Input Support:Accepts external voltage/current signals.
7. Power Rail Monitoring:Real-time sensor supply voltage measurement.
8. Remote Kelvin Compensation:Voltage accuracy via line resistance compensation.

Dimention:

Optical Interface USB Frame Grabber USB MIPI With Kelvin Compensation 0

Sensor Supply Voltage Measurement:

Sensor Power Supply	Measurement Voltage Range	Accuracy	Number of Test Channels
AVDD	0.8V-3.3V	+_10mV	2X5
AVDD2	1.3-8.0V	+_50mV	2X5
