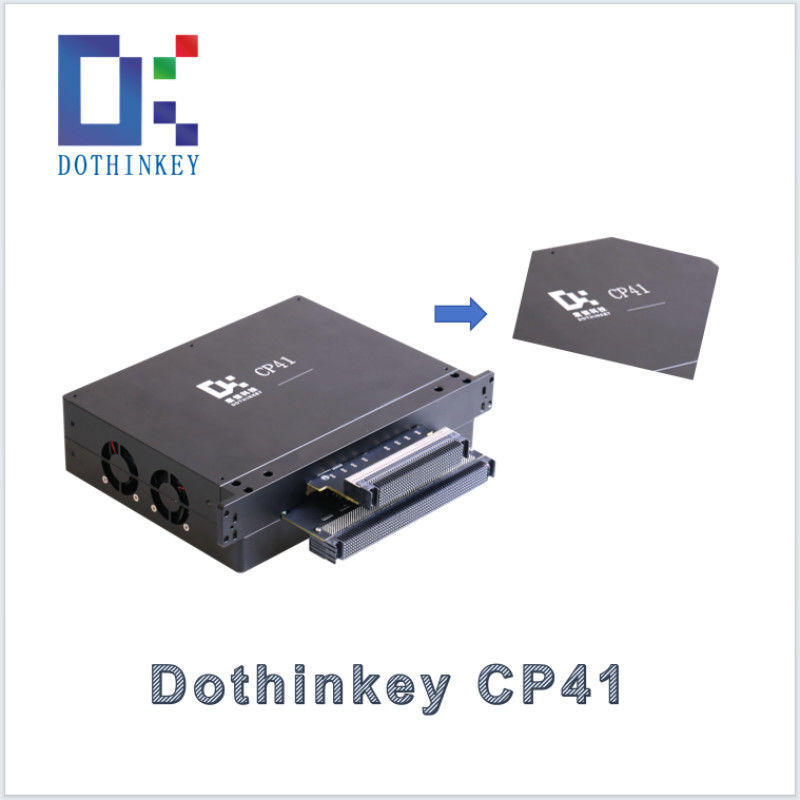

Name: ESD USB 3.0 Frame Grabber 4X36 OS Channels for Automotive And Industrial Use
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > USB Frame Grabber >

ESD USB 3.0 Frame Grabber 4X36 OS Channels for Automotive And Industrial Use

ESD USB 3.0 Frame Grabber

USB 3.0 Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

ESD USB 3.0 Frame Grabber 4X36 OS Channels for Automotive And Industrial Use

Product Details

PC Communication Interface:

100 Fiber Optic Interface * 2

MIPI Data Channel:

4CH D-PHY

Kelvin Compensation:

AWDD, VPP2, DOWDD, DWDD Support Kelvin Compensation

Buffer Capacity:

DDR4 8Gbit * 2

DPS Characteristics:

AWDD, DOWDD, VPP2 Maximum Drive Capability 0.5A

Sensor IO Level:

1.25 ~ 5V

Power Supply:

DC12V/8A

OS Characteristics:

Support 4X36 Channels OS Test

Highlight:

ESD USB 3.0 Frame Grabber

USB 3.0 Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

CP41 USB Frame Grabber ESD Protection 4X36 OS Channels Automotive and Industrial Use

Featutes:

1. Multi-protocol 4-lane MIPI PHY receiver
2. 4×4 matrix power supply with <10ppm/°C drift
3. Autoranging picoammeter functionality
4. 144-point continuity test grid (AC/DC modes)
5. Programmable gain instrumentation amplifier
6. Power rail histogram analysis (6σ statistics)
7. LP mode leakage current characterization
8. Remote 4-wire sensing compensation
9. Sensor power quality assessment suite

Schematic:

ESD USB 3.0 Frame Grabber 4X36 OS Channels for Automotive And Industrial Use 0

Dimention:

ESD USB 3.0 Frame Grabber 4X36 OS Channels for Automotive And Industrial Use 1

CP41 LP Voltage Measurement:

Pin Name	Measured Voltage Range	Accuracy	Number of test channels
MIPI Pin	0~1.4V	±10mV	4X10
