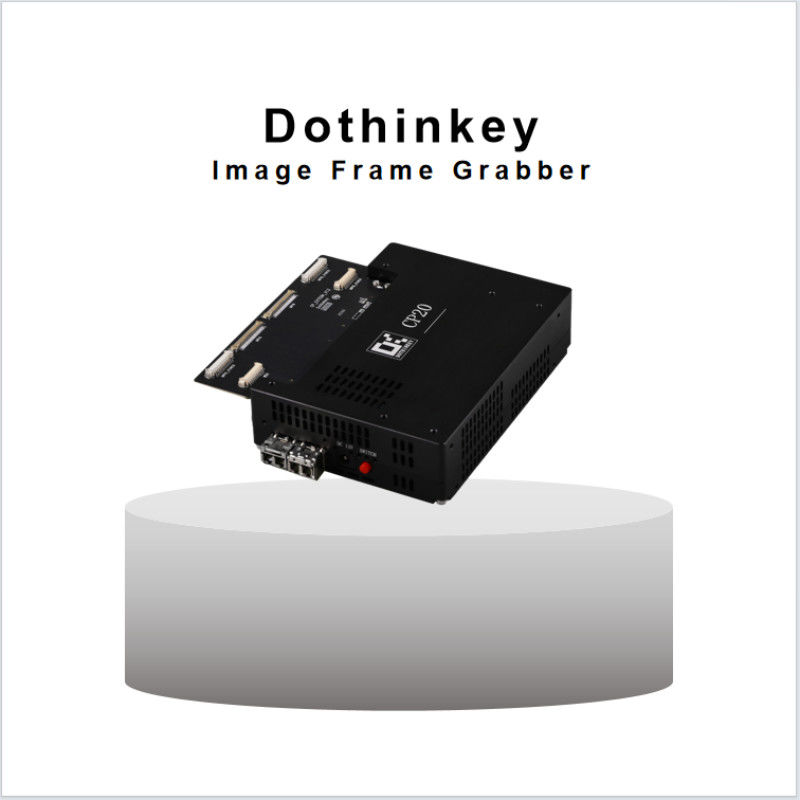

Name: Industrial MIPI Capture Card 2 Channel Image Frame Grabber Dothinkey
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP20
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Capture Card >

Industrial MIPI Capture Card 2 Channel Image Frame Grabber Dothinkey

Industrial MIPI Capture Card

2 channel MIPI Capture Card

Image Frame Grabber Dothinkey

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

Industrial MIPI Capture Card 2 Channel Image Frame Grabber Dothinkey

Product Details

PowerSupply:

DC12V/8A

SensorInterface:

MIPID-PHYCSI

KelvinCompensation:

AVDD,AVDD2,VPP2,DOVDD,DVDDsupportKelvin Compensation.

OSFeatures:

Supports 2×33 OS Testing

Output Voltage:

24V/DC

MIPI Data Channels:

MIPI D-PHY 1/2/4 Lane

Sensor Clock:

6-99MHz±0.01MHZ

Working Temperature:

10℃~35℃

Highlight:

Industrial MIPI Capture Card

2 channel MIPI Capture Card

Image Frame Grabber Dothinkey

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

CP20 Industrial MIPI Capture Card OS Support 8X39 Roads SPI 20MHz

Featutes:

1)2-channel MIPI D/C-PHY image acquisition; 2.2*5-channel Sensor adjustable power supply;
2)2*5 channels Sensor adjustable power supply;
3)Support mA, uA, nA current detection;
4)Support 2*33 channels OS test;
5)Support product ID setting;
6)Support analog measurement input;
7)Support sensor power supply voltage measurement;
8)Support sensor power supply remote kelvin compensation.

Dimention:

Industrial MIPI Capture Card 2 Channel Image Frame Grabber Dothinkey 0

DPS Current Sense Accuracy:

Channel	Gear	Current detection range	Resolution	Accuracy (25°C)
AVDD	mA	1mA~Maximum Output Current	0.1mA	0.7%+5LSB
nA	uA	luA~3mA	0.1mA	0.7%+5LSB
DVDD	nA	luA~3mA	0.1mA	0.7%+5LSB
DOVDD	mA	100nA~300uA	10nA	0.7%+5LSB
VAUX	mA	1~100mA	lmA
