Name: MIPI Frame Grabber Dothinkey Capture Card 10 Way DSP Power CSI/C PHY Compatible
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP20
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Capture Card >

MIPI Frame Grabber Dothinkey Capture Card 10 Way DSP Power CSI/C PHY Compatible

MIPI Frame Grabber Dothinkey

Dothinkey Capture Card

10 Way DSP Capture Card

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

MIPI Frame Grabber Dothinkey Capture Card 10 Way DSP Power CSI/C PHY Compatible

Product Details

DPS Characteristics:

Supports 10-way Adjustable Power Supply

Output Voltage:

24V/DC

SensorInterface:

MIPID-PHYCSI

Analog Measurement Inputs:

ADC1~ADC6

Buffer Capacity:

DDR4_16Gbit

VAUX:

Measuring Range:1.3~8.0V, Accuracy: +_50mV

PowerSupply:

DC12V/8A

SPI Maximum Communication Frequency:

20MHz

Highlight:

MIPI Frame Grabber Dothinkey

Dothinkey Capture Card

10 Way DSP Capture Card

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

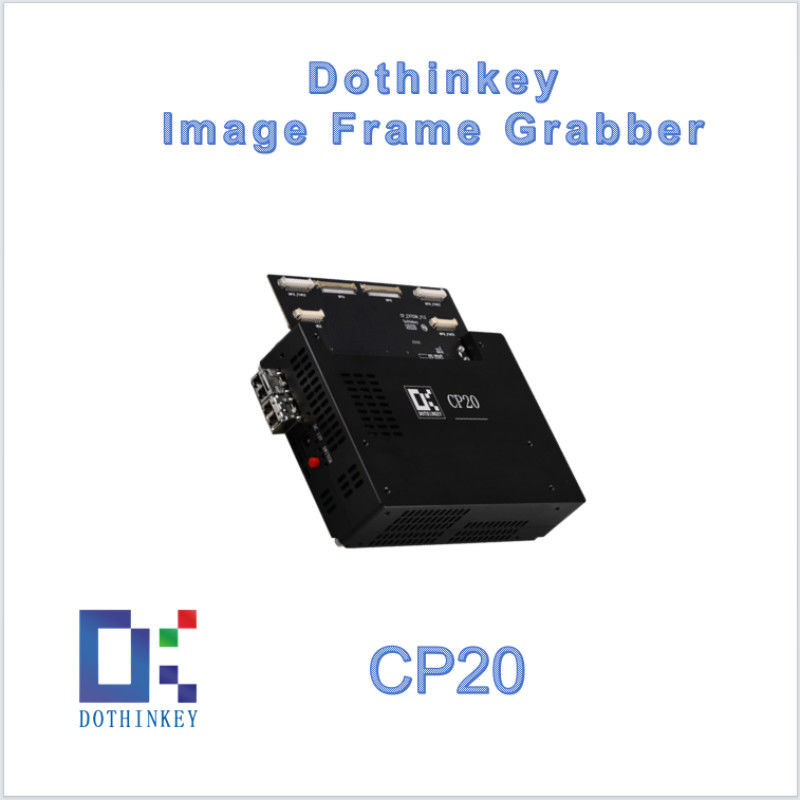

Dothinkey MIPI Capture Card 10-Way DSP Power CSI/C PHY Compatible

Featutes:

1. Dual MIPI D/C-PHY Imaging
High-speed dual-channel capture compliant with MIPI standards.
2. 2×5 Adjustable Sensor Power
10 programmable voltage rails (e.g., 2.2V) for multi-sensor support.
3. Current Sensing (mA/µA/nA)
Precision measurement from milliampere to nanoampere ranges.
4. 66-Channel OS Testing
Open/short circuit detection across 66 signal lines.
5. Dynamic Product ID
Programmable device identification for system traceability.
6. Analog Input Interface
Supports external voltage/current signal measurement.
7. Real-Time Voltage Monitoring
±0.5% accuracy on sensor power rails.
8. Remote Kelvin Compensation
4-wire sensing eliminates line resistance errors.

Schematic:

MIPI Frame Grabber Dothinkey Capture Card 10 Way DSP Power CSI/C PHY Compatible 0

Dimention:

MIPI Frame Grabber Dothinkey Capture Card 10 Way DSP Power CSI/C PHY Compatible 1

CP20 Product Specifications:

Pin Number	Pin Name	Pin Type	Function
A1	A_DOVDD	Power	Image Sensor 10 power supply.
A2	A_DOVDD	Power	Image Sensor 10 power supply.
A3	A DOVDD_FB	Input	Image sensor 10 power supply remote kelvin compensation feedback pin.
A4	A DVDD	Power	Image Sensor 10 power supply.
A5	A DVDD	Power	Image Sensor 10 power supply.
A6	A DVDD	Power	Image Sensor 10 power supply.
A7	A DVDD	Power	Image Sensor 10 power supply.
A8	A DVDD	Power	Image Sensor 10 power supply.
A9	A DVDD FB	Input	Image sensor 10 power supply remote kelvin compensation feedback pin.
A10	A AVDD	Power	Image Sensor 10 power supply.
A11	A AVDD	Power	Image Sensor 10 power supply.
A12	A AVDD	Power	Image Sensor 10 power supply.
A13	A_AVDD FB	Input	Image sensor 10 power supply remote kelvin compensation feedback pin.
